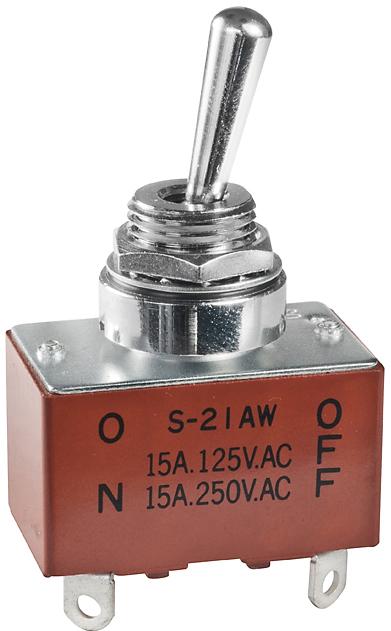

NKK SwitchesS21AWSwitch Toggle
Switch Toggle ON None OFF DPST Round Lever Solder Lug 15A 250VAC 30VDC Panel Mount with Threads
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| SVHC | Yes |
| SVHC超标 | Yes |
| Automotive | No |
| PPAP | No |
| Medium Capacity | |
| Round Lever | |
| DPST | |
| ON None OFF | |
| Threaded | |
| 15@250VAC 30VDC | |
| 2000VAC | |
| 1000 | |
| 10 | |
| 25000 | |
| 50000 | |
| Chrome | |
| 17.5 | |
| Panel Mount with Threads | |
| Solder Lug | |
| 4 | |
| 5.7 | |
| Panel | |
| Panel | |
| IP67 | |
| Straight | |
| -10 | |
| 70 | |
| Standard | |
| M12 x 1 | |
| 31.2 | |
| 12.5 | |
| 18.6 | |
| 20 | |
| 31.2 | |
| 18.6 | |
| 55.7 |
The medium capacity S21AW toggle switch from NKK Switches allows you to control the status of your project. It has a DPST configuration. This device has a maximum current rating of 15 A @ 250VAC 30VDC. This toggle switch has a minimum operating temperature of -10 °C and a maximum of 70 °C. The S21AW toggle switch has a solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 31.2 mm long, 55.7 mm tall and 18.6 mm deep.
