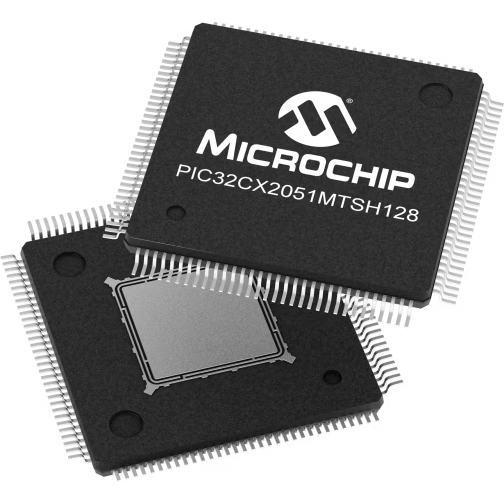

Microchip TechnologyPIC32CX2051MTSH128-I/X9BMicrocontrollers - MCUs

Microchip’s new 32-bit connectivity MCU with Immutable Boot and a JIL high Hardware Security Module for Robust Security

PIC32CX SG devices are mid-performance, 120-MHz microcontrollers (MCUs) that combine connectivity, performance, and industry-leading integrated security options to power industrial, IoT, automotive and other applications. Take advantage of the highest level of security in an MCU of its class.

These AEC-Q100 Grade 1-qualified MCUs come in three options, PIC32CX SG41, PIC32CX SG60 and PIC32CX SG61, with 100-pin and 128 pin packages in extended temperature ranges.

It adds a JIL High-certified secure Hardware Security Module (HSM) to the MCU.

Features and Benefits

• PIC32CX1025SG41128 or PIC32CX1025SG61128 microcontrollers
• One mechanical reset button
• Two mechanical programmable buttons
• Two user LEDs
• USB interface, Host or Device
• 64 Mbit Quad SPI Flash
• AT24MAC402 Serial EEPROM with EUI-48™ MAC address
• Ethernet 10/100Mbps
• – RMII Interface with modular PHY Header
• SD/SDIO card connector
• Two CAN interfaces with on-board transceivers
• I²C-based temperature sensor
• DAC Output Header
• mikroBUS header connector
• Two MCHP extension headers
• Arduino Uno header connectors
• CoreSight 10/20 connector
• Embedded debugger (PKoB4)
  • Programming and debugging
  • Virtual COM port (CDC)
• USB powered
