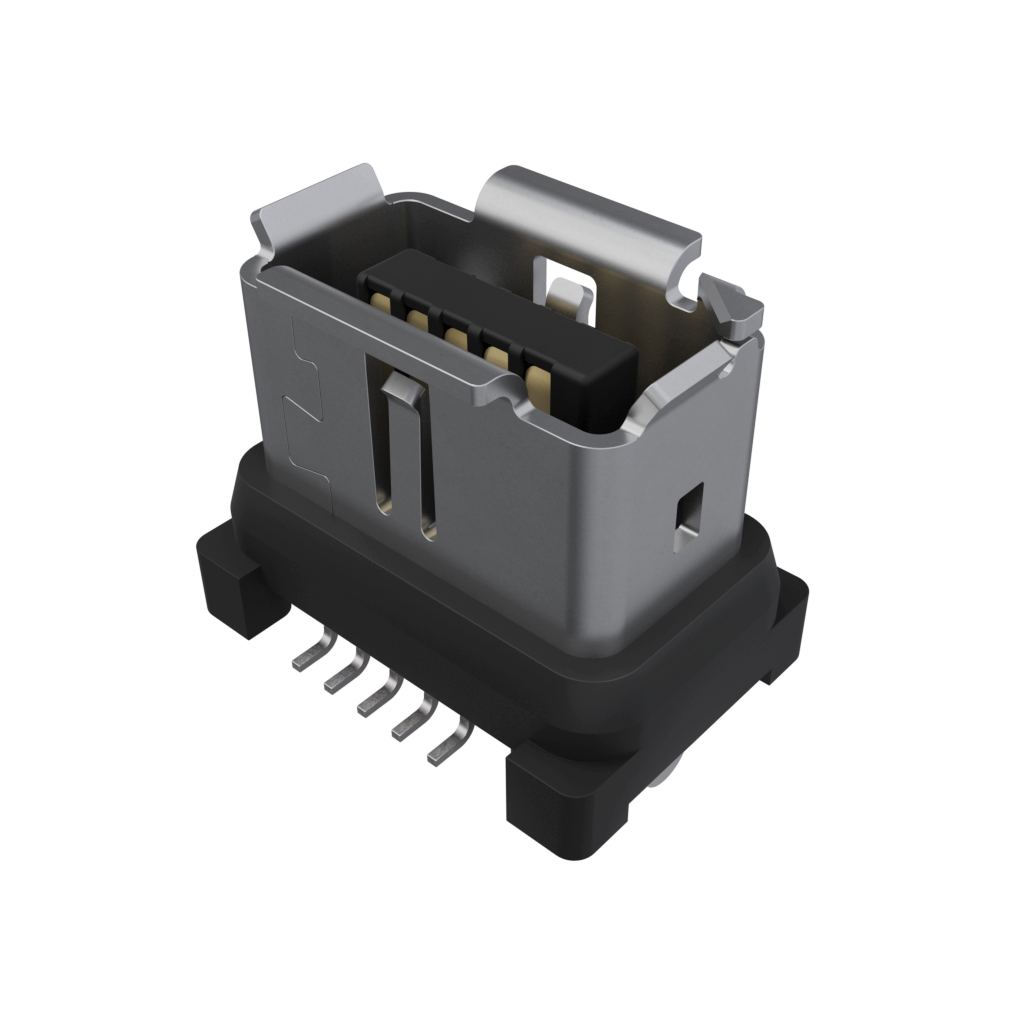

Amphenol Communications SolutionsND9BS2200电话及电信连接器

Overview

ix Industrial™ connectors enable IoT connectivity for Ethernet and other Industrial protocols through all levels of an operation from the Enterprise/Cloud to the sensors/actuators at the factory floor. These 10mm pitch connectors featuring 2-point metal latches are just 25% of the size of an RJ45 connector, and as such allow much greater port density and mating security. They are PoE capable, provide data performance to Cat6A level (10GBASE-T), and feature 360° shielding through the mated pair for superior EMI protection.

• • Increased port density compared to RJ45
• • High data rate performance for 10G Ethernet, with PoE capability
• • Excellent EMI protection for noisy environments
• • Robust 2 point metal latches for secure mating
• • Fully intermateable with ix Industrial™ products from other authorized vendors

Applications

•  Data
• •  Switches
• •  Traffic Control
• •  Monitoring systems

•  Medical
• •  Healthcare
• •  Medical equipment

•  Industrial & Instrumentation
• •  Industrial Internet of Things (IIoT)
• •  Factory/Process Automation
• •  Robotics
• •  Building Automation
• •  Test Equipment

Features and Benefits

•  Features
• •  Complies with IEC61076-3-124
• •  75% smaller than RJ45
• •  10 position connector with Cat6A 10GBASE-T performance and PoE capability
• •  360° shielding through mated pair
• •  2-point metal latching
• •  Heavy duty shield solder hold-down tabs on PCB mount receptacles
• •  5000 mating cycles
• •  Field terminable IDC plugs with solder options
• •  Keyed Housings (Type-A, -B, -C)

•  Benefits
• •  Fully qualified second source intermateable with other vendors' products
• •  10mm connector pitch provides greater port density
• •  Supports Ethernet/IP and common protocols including Profinet, DeviceNet, EtherCAT, Modbus and others
• •  Provides excellent EMI immunity for use in electrically noisy environments
• •  Extremely robust mating to prevent accidental disconnection, and more durable than RJ45 latch
• •  Provides secure connection to the PCB protecting SMT joint integrity under mechanical stresses
• •  High durability
• •  Ease of custom cabling or repair in the field with IDC contacts
• •  Solder version for high volume assembly
• •  Controlled mating for Ethernet, Signal/Bus, other ports
