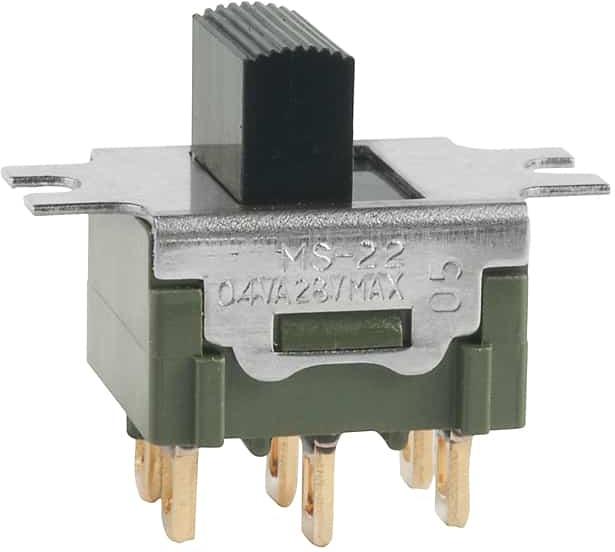

NKK SwitchesMS22BFG01Switch Slide
Switch Slide ON None ON DPDT Top Slide 0.1A 28VAC 28VDC 0.4VA 100000Cycles Solder Lug Panel Mount
| Compliant | |
| EAR99 | |
| Obsolete | |
| 8536.50.90.50 | |
| SVHC | Yes |
| SVHC超标 | Yes |
| Automotive | No |
| PPAP | No |
| Top Slide | |
| DPDT | |
| ON None ON | |
| 0.1@28VAC 28VDC | |
| 0.4@28VAC 28VDC | |
| 1000VAC | |
| 1000 | |
| 20 | |
| 50000 | |
| 100000 | |
| 5.1 | |
| 2 | |
| 4.8 | |
| Panel Mount | |
| Solder Lug | |
| 6 | |
| 4.5 | |
| 4.7 | |
| Terminals | |
| Epoxy | |
| Straight | |
| -30 | |
| 85 | |
| Miniature | |
| 19.6 | |
| 11.9 | |
| 7.6 | |
| 19.6 | |
| 11.9 | |
| 17.2 |
This easy-to-use MS22BFG01 slide switch from NKK Switches is perfect for turning your circuit on and off. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a DPDT configuration. This slide switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The MS22BFG01 slide switch has a solder lug termination style. This product is 19.6 mm long, 17.2 mm tall and 11.9 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
| EDA / CAD Models |
