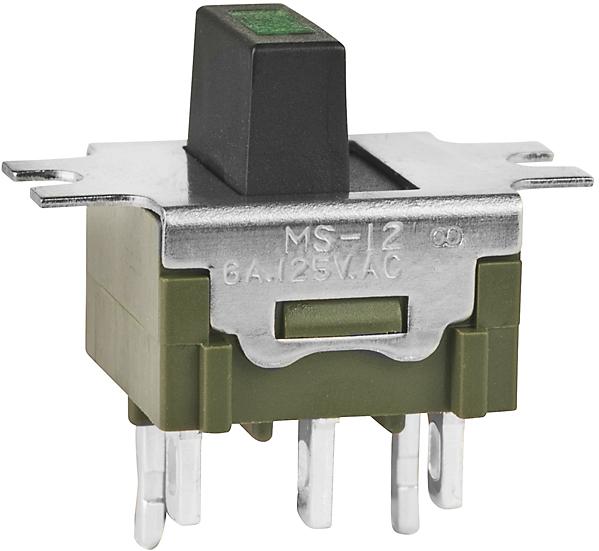

NKK SwitchesMS12LFW01FSwitch Slide
Switch Slide ON None ON SPDT Top Slide 6A 250VAC 50000Cycles Solder Lug Panel Mount
| Compliant | |
| EAR99 | |
| Obsolete | |
| 8536.50.90.50 | |
| SVHC | Yes |
| SVHC超标 | Yes |
| Automotive | No |
| PPAP | No |
| Top Slide | |
| SPDT | |
| ON None ON | |
| 6@125VAC | |
| 1000VAC | |
| 1000 | |
| 25000 | |
| 50000 | |
| 5.1 | |
| 1 | |
| Panel Mount | |
| Solder Lug | |
| 3 | |
| 4.5 | |
| 4.7 | |
| Terminals | |
| Epoxy | |
| Straight | |
| -15 | |
| 60 | |
| Miniature | |
| 19.6 | |
| 11.9 | |
| 7.6 | |
| 19.6 | |
| 11.9 | |
| 19.05 |
This MS12LFW01F slide switch from NKK Switches is great for turning your circuit on and off. This device has a maximum current rating of 6 A @ 125VAC. It has a SPDT configuration. This slide switch has a minimum operating temperature of -10 °C and a maximum of 55 °C. The MS12LFW01F slide switch has a solder lug termination style. The maximum AC voltage rating is 250 VAC. This product is 19.6 mm long, 19.05 mm tall and 11.9 mm deep.
