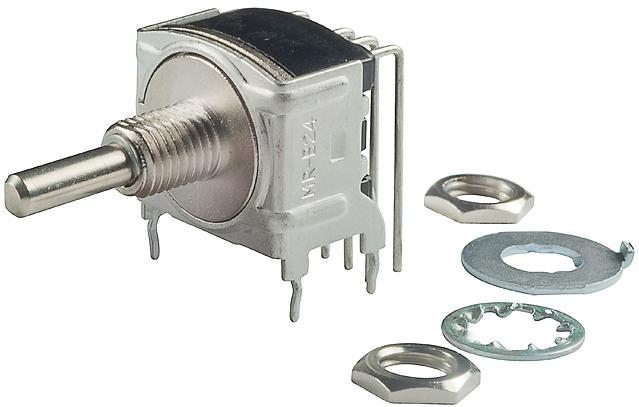

NKK SwitchesMRB24HSwitch Rotary
Switch Rotary ON ON ON DP3T 3 Flatted Shaft PC Pins 0.1A 28VAC 28VDC 0.4VA
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.50.90.20 | |
| SVHC | Yes |
| SVHC超标 | Yes |
| Automotive | No |
| PPAP | No |
| ON ON ON | |
| Flatted Shaft | |
| DP3T | |
| 45 | |
| 3 | |
| 2 | |
| 1 | |
| 0.1@28VAC 28VDC | |
| 0.4@28VAC 28VDC | |
| 500VAC | |
| 100 | |
| 80 | |
| 10000 | |
| 30000 | |
| 0.04 | |
| Miniature | |
| 3.1 | |
| 10 | |
| Non-Shorting | |
| O-Ring/Process/Molded-In/N/A | |
| Interior/N/A/Terminals/(Frame/Base) | |
| O-Ring/Process/Molded-In/N/A | |
| Panel Mount/Through Hole | |
| PC Pins | |
| 3.5 | |
| 3 | |
| Polyamide | |
| Right Angle | |
| -10 | |
| 70 | |
| 7 | |
| 15.74 | |
| 10.02 | |
| 16.3 | |
| 15.74 | |
| 29.91 | |
| 16.3 |
This MRB24H rotary switch from NKK Switches gives you the ability to have more than two positions for your switch. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a DP3T configuration. This rotary limit switch has a minimum operating temperature of -10 °C and a maximum of 70 °C. The MRB24H rotary limit switch has a PC pin termination style. This product is 15.74 mm long, 16.3 mm tall and 29.91 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
