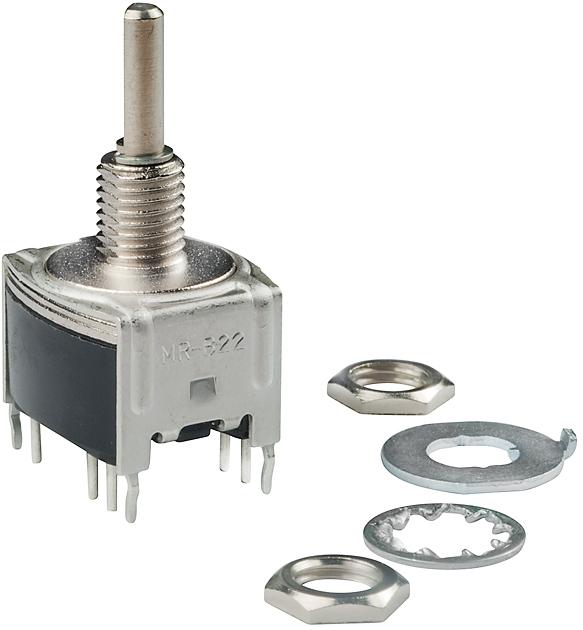

NKK SwitchesMRB22BSwitch Rotary
Switch Rotary ON None ON DPDT 2 Flatted Shaft PC Pins 0.1A 28VAC 28VDC 0.4VA
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.50.90.20 | |
| SVHC | Yes |
| SVHC超标 | Yes |
| Automotive | No |
| PPAP | No |
| ON None ON | |
| Flatted Shaft | |
| DPDT | |
| 90 | |
| 2 | |
| 2 | |
| 1 | |
| 0.1@28VAC 28VDC | |
| 0.4@28VAC 28VDC | |
| 500VAC | |
| 100 | |
| 80 | |
| 10000 | |
| 30000 | |
| 0.04 | |
| Miniature | |
| 3.1 | |
| 10 | |
| Non-Shorting | |
| O-Ring/Process/Molded-In/N/A | |
| Interior/N/A/Terminals/(Frame/Base) | |
| O-Ring/Process/Molded-In/N/A | |
| Panel Mount/Through Hole | |
| PC Pins | |
| 3.5 | |
| 6 | |
| Polyamide | |
| Straight | |
| -10 | |
| 70 | |
| 7 | |
| 15.74 | |
| 14.5 | |
| 11 | |
| 15.74 | |
| 14.5 | |
| 28 |
By giving more than two switch positions, this MRB22B rotary switch from NKK Switches gives the ability to expand your design options. It has a DPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This rotary limit switch has a minimum operating temperature of -10 °C and a maximum of 70 °C. The MRB22B rotary limit switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 15.74 mm long, 28 mm tall and 14.5 mm deep.
