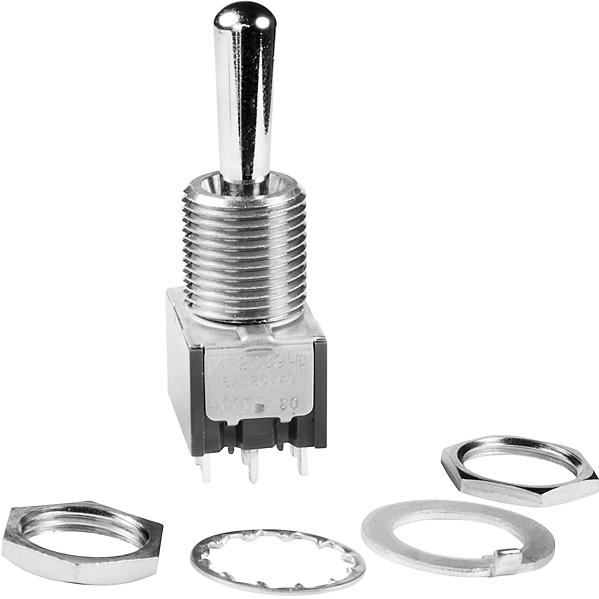

NKK SwitchesM2039B2B1W01Switch Toggle
Switch Toggle ON OFF (ON) 3PDT Large Bat Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads
| Compliant with Exemption | |
| EAR99 | |
| Obsolete | |
| 8536.50.90.65 | |
| SVHC | Yes |
| SVHC超标 | Yes |
| Automotive | No |
| PPAP | No |
| Large Bat Lever | |
| 3PDT | |
| ON OFF (ON) | |
| Threaded | |
| 6@125VAC | |
| 1000VAC | |
| 1000 | |
| 10 | |
| 25000 | |
| 100000 | |
| Bright Chrome | |
| 17.5 | |
| 3 | |
| 4.8 | |
| Panel Mount with Threads | |
| Solder Lug | |
| 9 | |
| 4.5 | |
| 4.7 | |
| Epoxy | |
| Terminals | |
| Epoxy | |
| Straight | |
| -30 | |
| 85 | |
| Miniature | |
| M12 x 1 | |
| 13 | |
| 12 | |
| 17.5 | |
| 11.5 | |
| 13 | |
| 17.5 | |
| 45.5 |
Using this M2039B2B1W01 toggle switch from NKK Switches is ideal for toggling the power of your applications. This device has a maximum current rating of 6 A @ 125VAC. It has a 3PDT configuration. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2039B2B1W01 toggle switch has a solder lug termination style. This product is 13 mm long, 45.5 mm tall and 17.5 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.
