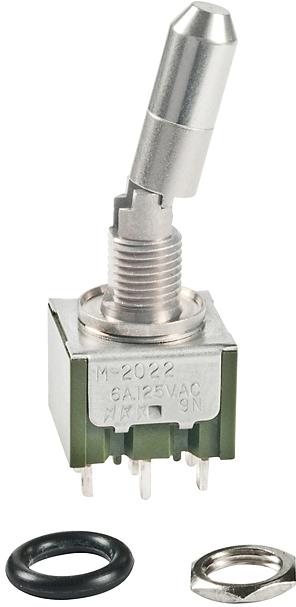

NKK SwitchesM2022L1L3W01Switch Toggle
Switch Toggle ON None ON DPDT Locking Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads
| Compliant with Exemption | |
| EAR99 | |
| Obsolete | |
| M2022L1L3W01 | |
| SVHC | Yes |
| SVHC超标 | Yes |
| Automotive | No |
| PPAP | No |
| Locking Lever | |
| DPDT | |
| ON None ON | |
| Threaded | |
| 6@125VAC | |
| 1000VAC | |
| 1000 | |
| 10 | |
| 25000 | |
| 50000 | |
| Chrome | |
| 2 | |
| 4.8 | |
| Panel Mount with Threads | |
| Solder Lug | |
| 6 | |
| 4.5 | |
| 4.7 | |
| O-Ring/Epoxy | |
| Panel/Terminals | |
| O-Ring/Epoxy | |
| IP67 | |
| Straight | |
| -30 | |
| 85 | |
| Miniature | |
| 1/4-40 | |
| 13 | |
| 9.8 | |
| 12.7 | |
| 9.4 | |
| 13 | |
| 12.7 |
With this M2022L1L3W01 toggle switch from NKK Switches you can toggle on or off various components of your application. It has a DPDT configuration. This device has a maximum current rating of 6 A @ 125VAC. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2022L1L3W01 toggle switch has a solder lug termination style. This product is 13 mm long and 12.7 mm. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.
