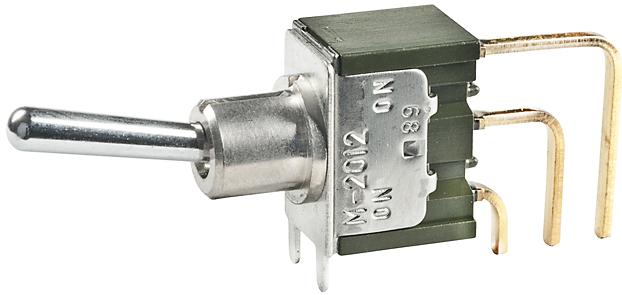

NKK SwitchesM2012SA2G40Switch Toggle
Switch Toggle ON None ON SPDT Small Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket
| Compliant with Exemption | |
| EAR99 | |
| Obsolete | |
| 8536.50.90.65 | |
| SVHC | Yes |
| SVHC超标 | Yes |
| Automotive | No |
| PPAP | No |
| Small Bat Lever | |
| SPDT | |
| ON None ON | |
| Unthreaded | |
| 0.1@28VAC 28VDC | |
| 0.4@28VAC 28VDC | |
| 1000VAC | |
| 1000 | |
| 20 | |
| 50000 | |
| 100000 | |
| Bright Chrome | |
| 12.28 | |
| 1 | |
| PC Mount with Bracket | |
| PC Pins | |
| 3 | |
| 2.7 | |
| 3.81 | |
| Epoxy | |
| Terminals | |
| Epoxy | |
| Vertical Right Angle | |
| -30 | |
| 85 | |
| Miniature | |
| 7.9 | |
| 7.32 | |
| 12.7 | |
| 13 | |
| 8 | |
| 40.32 | |
| 13 |
With this M2012SA2G40 toggle switch from NKK Switches you can toggle on or off various components of your application. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2012SA2G40 toggle switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 8 mm long, 13 mm tall and 40.32 mm deep.
