| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Evaluation Board | |
| DC to DC Converter and Switching Regulator Module | |
| 1 | |
| 2.5(Typ)|3.3(Typ)|5(Typ)|12(Typ)|15(Typ) | |
| 2500 | |
| 7VDC to 50VDC | |
| 400|500|800|1000 | |
| LMZ35003 |
Make your circuit green by using this LMZ35003EVM-001 power management development kit from Texas Instruments.
Dev Kit Description

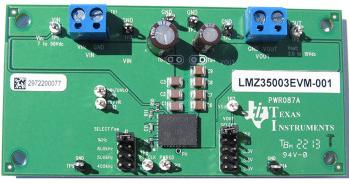

LMZ35003EVM-001 evaluation module (EVM) helps designers evaluate the performance and operation of the 2.5A SIMPLE SWITCHER® Power Module with 7V-50V Input. he EVM operates with an input voltage range of 7V to 50V with up to 2.5A capability. The output voltage can be selected from four preset values using a jumper (2.5V, 3.3V, 5V, 12V, 15V). The switching frequency can also be adjusted with jumpers (400 kHz, 500 kHz, 800 kHz, 1 MHz). 100V rated capacitors are placed on the input allowing the module to survive 65V line transients. Solder pads and jumpers are available to configure the EVM to specific requirements.
| EDA / CAD Models |
