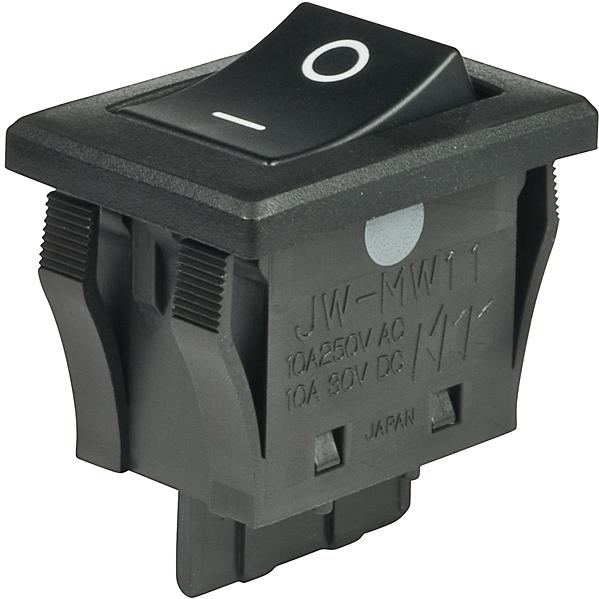

NKK SwitchesJWMW11RA1ASwitch Rocker
Switch Rocker ON None OFF SPST Quick Connect/Solder Lug Curved Rocker 10A 250VAC 30VDC 25000Cycles
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| Automotive | No |
| PPAP | No |
| SPST | |
| ON None OFF | |
| Curved Rocker | |
| 10@250VAC 30VDC | |
| 16 | |
| 2000VAC | |
| 1000 | |
| 10 | |
| 25000 | |
| 25000 | |
| Black | |
| 19.6 | |
| 1 | |
| 7.7 | |
| Panel Mount | |
| Quick Connect/Solder Lug | |
| 2 | |
| 7.5 | |
| Panel/Terminals/Flange | |
| N/A/Epoxy/Acrylonitrile Butadiene Rubber | |
| IP67 | |
| Melamine | |
| Black | |
| Polyamide | |
| Black | |
| Black | |
| Straight | |
| -25 | |
| 85 | |
| 29.6 | |
| 21 | |
| 21.5 | |
| 29.6 | |
| 21 | |
| 33 | |
| 13.6 | |
| 4 |
Safely turn on and off designs with this JWMW11RA1A rocker switch from NKK Switches. This device has a maximum current rating of 10 A @ 250VAC 30VDC. It has a SPST configuration. This rocker switch panel has a minimum operating temperature of -25 °C and a maximum of 85 °C. The JWMW11RA1A rocker switch panel has a quick connect/solder lug termination style. This product is 29.6 mm long, 33 mm tall and 21 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.
