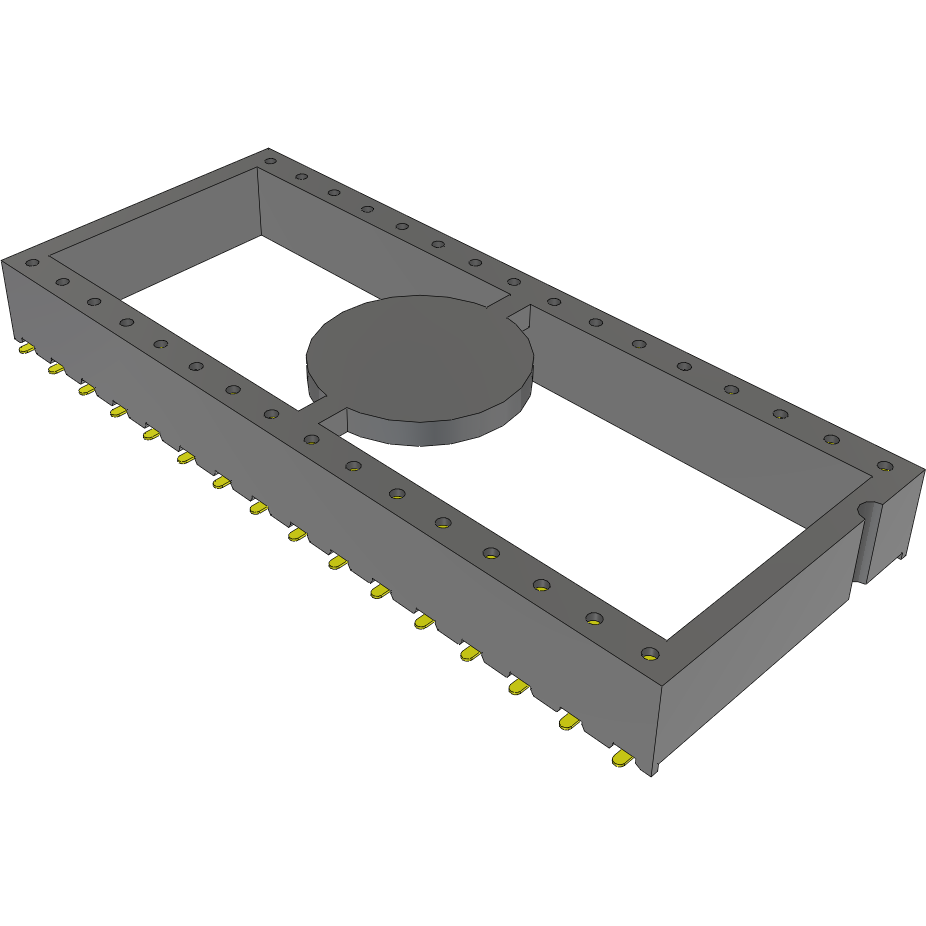

SamtecICF-632-S-O插座连接器

Cleanly connect multiple wires together by using this dip socket ICF-632-S-O connector socket from Samtec. This SKT connector's 32 contacts that are made out of beryllium copper and plated with gold over nickel. This is a 2-row connector. Its pitch is 2.54 mm. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 1 A. ICF-632-S-O is housed in liquid crystal polymer. This product is 40.64 mm long, 4.57 mm tall and 17.15 mm deep. This connector socket has an operating temperature of -55 to 125 °C. It is insulated with liquid crystal polymer. It uses the solder termination method.
