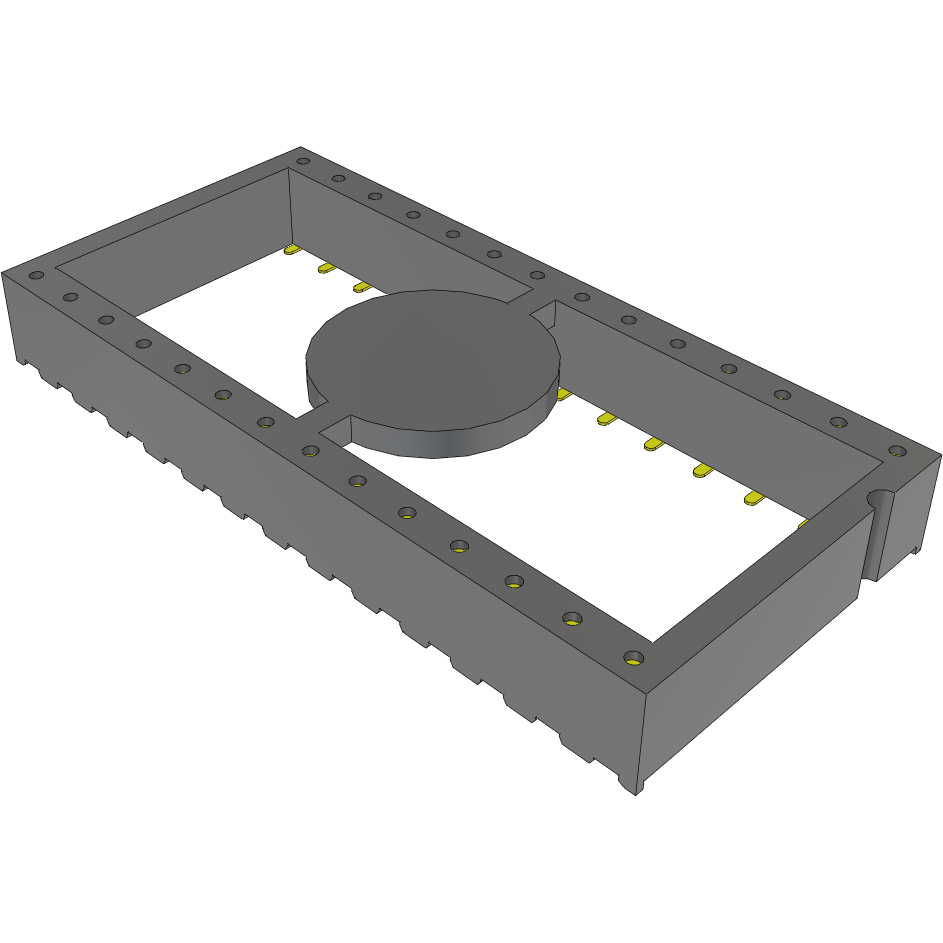

SamtecICF-628-S-I插座连接器

Easily interface your multiple wired connection by implementing this dip socket ICF-628-S-I connector socket manufactured from Samtec. This SKT connector's 28 contacts that are made out of beryllium copper and plated with gold over nickel. It has a socket type gender. Its pitch is 2.54 mm. This is a 2-row connector. It has a straight body orientation. ICF-628-S-I is housed in liquid crystal polymer. This device has a maximum current rating of 1 A. It is insulated with liquid crystal polymer. This connector socket has an operating temperature of -55 to 125 °C. This product is 35.56 mm long, 4.57 mm tall and 17.15 mm deep. It uses the solder termination method.
