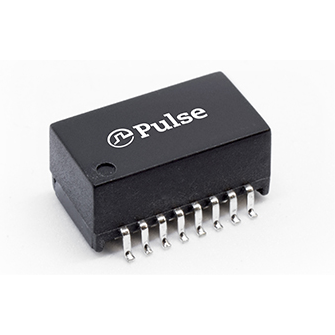

Pulse Electronics CorporationHX1188NL电信变压器

The Pulse Electronics Telecom Transformer is ideal for applications requiring high switching speeds. It has an operating temperature range between -40°C and 85°C. The tranformer has 16 terminals. This device comes in tube packaging and has dimensions of 12.7 mm length, 5.97mm height and 9.65mm depth. It has a turn ratio of 1CT:1CT/1CT:1CT. The maximum DCR on the primary side is 1.5 Ohm, while its 1.5 Ohm on the secondary side. It also has a 10/100base-t single port transformer.

Certifications:
• J-STD-002
• J-STD-020
• J-STD-075

For applications requiring high switching speeds, add this HX1188NL telecom transformer developed by Pulse to a telecommunication system. This telecom transformer has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 16 terminals. This device comes in tube packaging. This product is 12.7 mm long, 5.97 mm tall and 9.65 mm deep. It has a turn ratio of 1CT:1CT/1CT:1CT. The maximum DCR on the primary side is 1.5 Ohm, while its 1.5 Ohm on the secondary side. It also has a 10/100base-t single port transformer.
