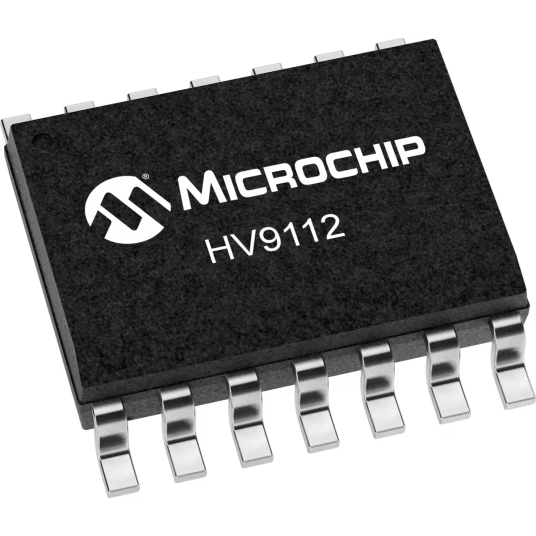

Microchip TechnologyHV9112NG-G电流模式 PWM 控制器
Current Mode PWM Controller 3000kHz 14-Pin SOIC N Tube
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Current Mode PWM Controller | |
| Current Mode PWM Controller | |
| Push-Pull | |
| 1 | |
| 200 | |
| 3000(Typ) | |
| 49.6 | |
| 30 | |
| 20 | |
| 9 to 13.5 | |
| 9 | |
| 13.5 | |
| 1 | |
| 750 | |
| No | |
| Yes | |
| No | |
| 8.1 | |
| -55 | |
| 125 | |
| Tube | |
| Mounting | Surface Mount |
| Package Height | 1.65(Max) |
| Package Width | 3.9 |
| Package Length | 8.65 |
| PCB changed | 14 |
| Standard Package Name | SO |
| Supplier Package | SOIC N |
| 14 | |
| Lead Shape | Gull-wing |
Generate and regulate a stable current with this HV9112NG-G current controller by Microchip Technology. This current mode controller supports push-pull topology. It has single PWM output. Its switching regulator has a frequency of 3000(Typ) kHz. This device has a minimum operating supply voltage of 9 V and a maximum of 13.5 V. This current mode controller's maximum duty cycle is 49.6 %.
