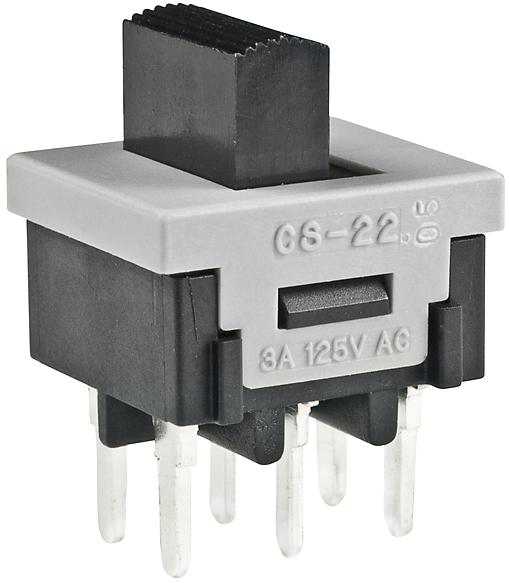

NKK SwitchesCS22BNW03Switch Slide
Switch Slide ON None ON DPDT Top Slide 3A 250VAC 50000Cycles PC Pins Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.50 | |
| Automotive | No |
| PPAP | No |
| Top Slide | |
| DPDT | |
| ON None ON | |
| 3@125VAC | |
| 1000VAC | |
| 1000 | |
| 10 | |
| 20000 | |
| 50000 | |
| 5.1 | |
| 2 | |
| 4.8 | |
| Through Hole | |
| PC Pins | |
| 6 | |
| 6.4 | |
| 4.7 | |
| Terminals | |
| Epoxy | |
| Straight | |
| -30 | |
| 85 | |
| Miniature | |
| 14 | |
| 11.9 | |
| 7.6 | |
| 14 | |
| 11.9 | |
| 14.8 |
Using the CS22BNW03 slide switch from NKK Switches is the best way to turn your circuit on or off. It has a DPDT configuration. This device has a maximum current rating of 3 A @ 125VAC. This slide switch has an operating temperature range of -30 °C to 85 °C. The CS22BNW03 slide switch has a PC pin termination style. This product is 14 mm long, 14.8 mm tall and 11.9 mm deep. The maximum AC voltage rating is 250 VAC.
