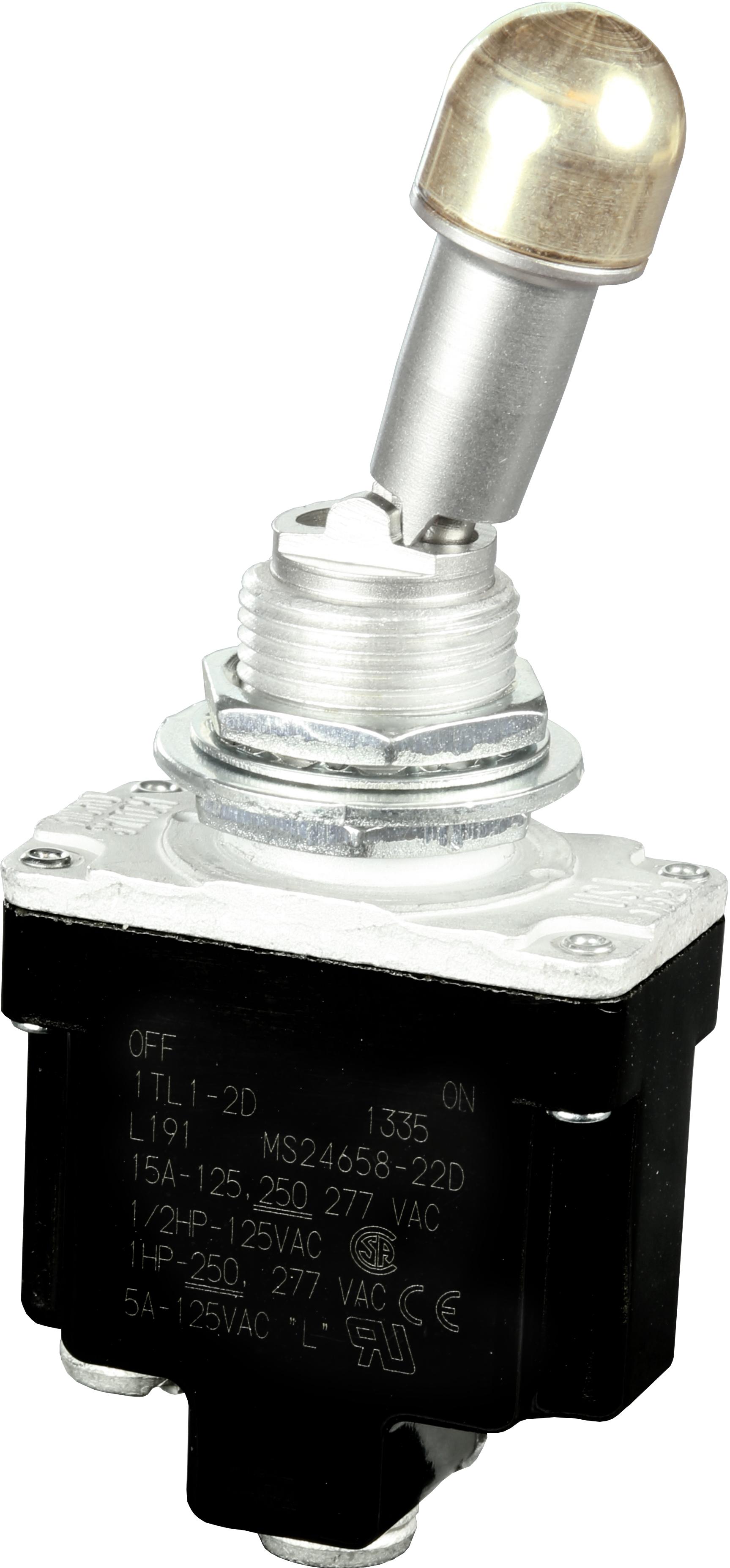

Honeywell1TL1-2DSwitch Toggle
Switch Toggle OFF ON SPST Locking Lever Screw 20A 277VAC 250VDC Panel Mount with Threads
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Locking Lever | |
| SPST | |
| OFF ON | |
| Threaded | |
| 20@28VDC | |
| 26.7 | |
| Panel Mount with Threads | |
| Screw | |
| 2 | |
| 3.3 | |
| Complete | |
| Complete | |
| Straight | |
| -65 | |
| 72 | |
| 15/32-32 | |
| 28.4 | |
| 11.9 | |
| 15.7 | |
| 34.3 | |
| 28.4 | |
| 15.7 | |
| 72.9 |
Using this 1TL1-2D toggle switch from Honeywell is ideal for toggling the power of your applications. This device has a maximum current rating of 20 A @ 28VDC. It has a SPST configuration. This toggle switch has a minimum operating temperature of -65 °C and a maximum of 72 °C. The 1TL1-2D toggle switch has a screw termination style. This product is 28.4 mm long, 72.9 mm tall and 15.7 mm deep. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250 VDC.
