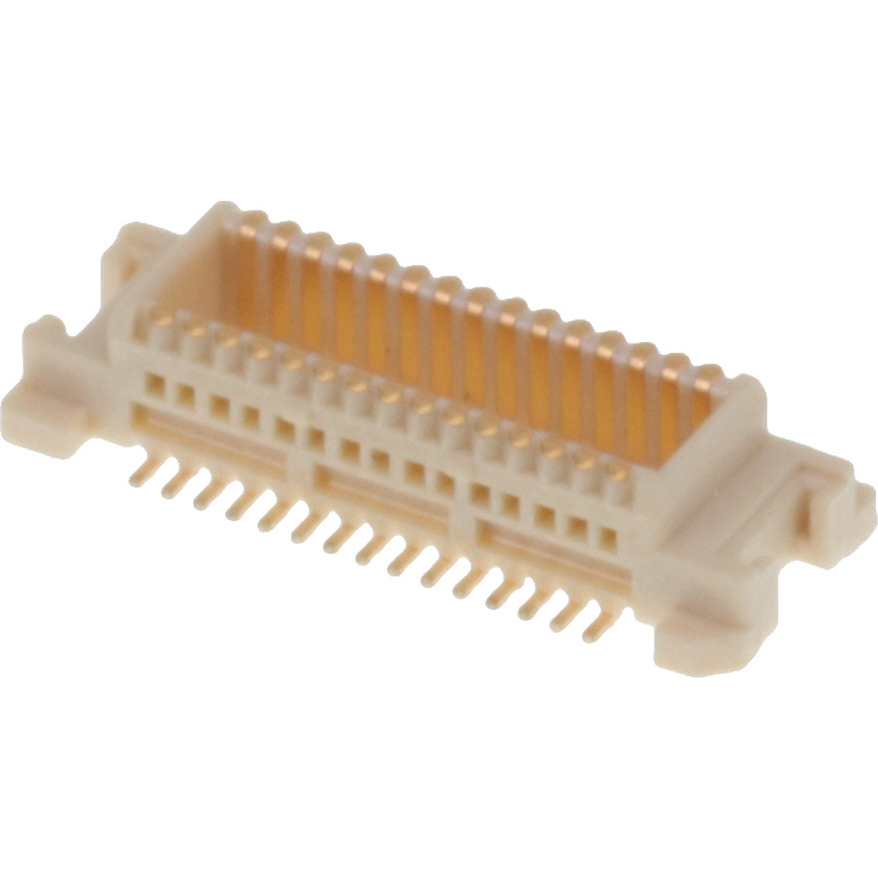

Molex0537480308连接器插头及 PCB 插座
Conn Board to Board HDR 30 POS 0.5mm Solder ST SMD SlimStack T/R
Other Part Names : 537480308
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Board to Board | |
| HDR | |
| 30 | |
| 2 | |
| Solder | |
| 0.5 | |
| Straight | |
| 0.5/Contact | |
| 50V | |
| 100 | |
| 50 | |
| -40 | |
| 105 | |
| Tape and Reel | |
| 0.088619 | |
| 11.3 | |
| 4.3 | |
| 2.4 | |
| SlimStack | |
| Surface Mount |
Mounting this board to board 0537480308 header connector from Molex to your printed circuit board can help you support multiple physical configuration options. This PL connector's 30 contacts that are made out of brass and plated with gold over nickel. Its pitch is 0.5 mm. This is a 2-row connector. It has a maximum voltage rating of 50 VDC|50VAC. It has a straight body orientation. It has a plug type gender. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. 0537480308 is housed in white liquid crystal polymer. This product is 11.3 mm long, 2.4 mm tall and 4.3 mm deep.
| EDA / CAD Models |
