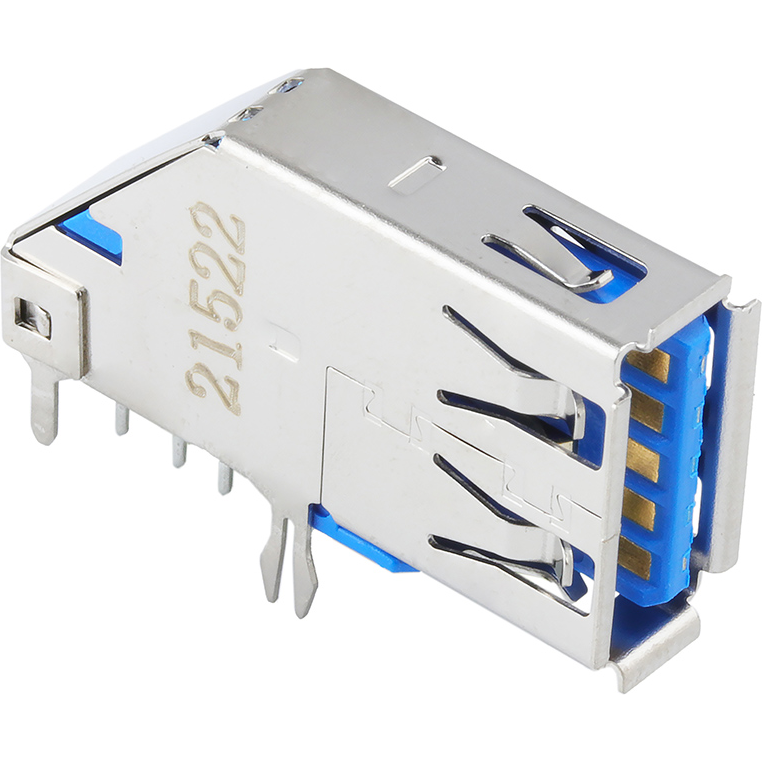

Molex0484040003Connector USB
Conn USB 3.0 Type A RCP 9 POS 2mm/2.5mm Solder RA Thru-Hole 9 Terminal 1 Port USB 3.0 Tray
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.80.00 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| USB 3.0 Type A | |
| RCP | |
| 9 | |
| 9 | |
| 1 | |
| Solder | |
| 2/2.5 | |
| Right Angle | |
| 1.8/Contact | |
| 30VDC|30VAC | |
| 100 | |
| 50 | |
| 5000 | |
| Stainless Steel | |
| Nickel | |
| -20 | |
| 85 | |
| Tray | |
| 3.42 | |
| 7.32 | |
| 25.7 | |
| USB 3.0 | |
| 14.7 | |
| Through Hole |
Utilize your audio and video with the usb 3.0 type a 0484040003 audio and video connector from Molex. This RCP connector's 9 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 30 VDC|30VAC. This connector has a single port. It has a right angle body orientation. It has a receptacle type gender. 0484040003 is housed in thermoplastic. This device has a maximum current rating of 1.8 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This part has a minimum operating temperature of -20 °C and a maximum of 85 °C. This product is 25.7 mm deep. Its 9 terminals use the solder termination method.
