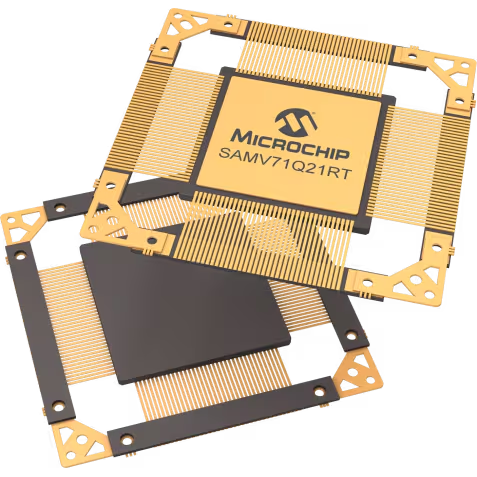

Microchip TechnologySAMV71Q21RT-DHB-EMicrocontrollers - MCUs

The SAMV71Q21RT is the radiation tolerant version of the popular Microchip SAMV71Q21 based on the high-performance 32-bit ARM Cortex-M7 processor with a Double Precision Floating Point Unit (FPU). These devices operate at up to 300MHz and feature up to 2048 Kbytes of Flash, and up to 384 Kbytes of multi-port SRAM which is configurable Instruction and Data Tightly Couple Memories to leverage the advanced DSP capabilities of the core.

The SAMV71Q21RT includes a 10/100 Ethernet MAC w/IEEE1588, HS USB Interface with integrated PHY, dual CAN-FD, QSPI, MediaLB, CMOS Imager interface, TDM/I2S (SSC). This space-qualified version of the product adds: Ceramic & Hermetic packages, extended temperature range -55C to 125C, extended qualification flow equivalent to QML-V or QML-Q space grade. Radiation performance for the SAMV71Q21RT: SEL LET > 60 MeV.cm2/mg (at 125C), and TID up to 30 Krad (Si).

Product Features

•  Core
• •  ARM® Cortex®-M7 running up to 300MHz
• •  16 Kbytes of ICache and 16 Kbytes of DCache with Error Code Correction (ECC)
• •  Single- and double-precision HW Floating Point Unit (FPU)
• •  Memory Protection Unit (MPU) with 16 zones
• •  DSP Instructions, Thumb®-2 Instruction Set
• •  Embedded Trace Module (ETM) with instruction trace stream, including Trace Port Interface Unit (TPIU)

•  Memories
• •  2048 Kbytes embedded Flash with unique identifier and user signature for user-defined data
• •  384 Kbytes embedded Multi-port SRAM
• •  Tightly Coupled Memory (TCM) interface with four configurations (disabled, 2 x 32 Kbytes, 2 x 64 Kbytes, 2 x 128 Kbytes)
• •  16 Kbytes ROM with embedded Bootloader routines (UART0, USB) and IAP routines
• •  16-bit Static Memory Controller (SMC) with support for SRAM, PSRAM, LCD module, NOR and NAND Flash with on-the-fly scrambling
• •  16-bit SDRAM Controller (SDRAMC) interfacing up to 256 MB and with on-the-fly scrambling

•  System
• •  Embedded voltage regulator for single-supply operation
• •  Power-on-Reset (POR), Brown-out Detector (BOD) and Dual Watchdog for safe operation
• •  Quartz or ceramic resonator oscillators: 3 to 20 MHz main oscillator with failure detection, 12 MHz or 16 MHz needed for USB operations. Optional low-power 32.768 kHz for RTC or device clock
• •  RTC with Gregorian calendar mode, waveform generation in low-power modes
• •  RTC counter calibration circuitry compensates for 32.768 kHz crystal frequency variations
• •  32-bit low-power Real-time Timer (RTT)
• •  High-precision Main RC oscillator with 12 MHz default frequency for device startup. In-application trimming access for frequency adjustment. 8/12 MHz are factory-trimmed.
• •  32.768 kHz crystal oscillator or Slow RC oscillator as source of low-power mode device clock (SLCK)
• •  One 500 MHz PLL for system clock, one 480 MHz PLL for USB high-speed operations
• •  Temperature Sensor
• •  One dual-port 24-channel central DMA Controller (XDMAC)

•  Low-Power Features
• •  Low-power Sleep, Wait and Backup modes, with typical power consumption down to 1.1 μA in Backup mode with RTC, RTT and wakeup logic enabled
• •  Ultra-low-power RTC and RTT
• •  1 Kbyte of backup RAM (BRAM) with dedicated regulator

•  Peripherals
• •  One Ethernet MAC (GMAC) 10/100 Mbps in MII mode and RMII with dedicated DMA. IEEE1588 PTP frames and 802.3az Energy-efficiency support. Ethernet AVB support with IEEE802.1AS Timestamping and IEEE802.1Qav credit-based traffic-shaping hardware support
• •  12-bit ITU-R BT. 601/656 Image Sensor Interface (ISI)
• •  Two master Controller Area Networks (MCAN) with Flexible Data Rate (CAN-FD) with SRAM-based mailboxes, time- and event-triggered transmission
• •  MediaLB® device with 3-wire mode, up to 1024 x Fs speed, supporting MOST25 and MOST50 networks
• •  Three USARTs. USART0/1/2 support LIN mode, ISO7816, IrDA®, RS-485, SPI, Manchester and Modem modes; USART1 supports LON mode.
• •  Five 2-wire UARTs with SleepWalking™ support
• •  Three Two-Wire Interfaces (TWIHS) (I2C-compatible) with SleepWalking™ support
• •  Quad I/O Serial Peripheral Interface (QSPI) interfacing up to 256 MB Flash and with eXecute-In-Place and on-the-fly scrambling
• •  Two Serial Peripheral Interfaces (SPI)
• •  One Serial Synchronous Controller (SSC) with I2S and TDM support
• •  Two Inter-IC Sound Controllers (I2SC)
• •  One High-speed Multimedia Card Interface (HSMCI) (SDIO/SD Card/e.MMC)
• •  Four Three-Channel 16-bit Timer/Counters (TC) with Capture, Waveform, Compare and PWM modes, constant on time. Quadrature decoder logic and 2-bit Gray Up/Down Counter for stepper motor
• •  Two 4-channel 16-bit PWMs with complementary outputs, Dead Time Generator and eight fault inputs per PWM for motor control, two external triggers to manage power factor correction (PFC), DC-DC and lighting control.
• •  Two Analog Front-End Controllers (AFEC), each supporting up to 12 channels with differential input mode and programmable gain stage, allowing dual sample-and-hold at up to 1.7 Msps. Offset and gain error correction feature.
• •  One 2-channel 12-bit 1 Msps-per-channel Digital-to-Analog Controller (DAC) with Differential and Over Sampling modes
• •  One Analog Comparator Controller (ACC) with flexible input selection, selectable input hysteresis

•  I/O
• •  Up to 114 I/O lines with external interrupt capability (edge- or level-sensitivity), debouncing, glitch filtering and On-die Series Resistor Termination
• •  Five Parallel Input/output Controllers (PIO)

•  Voltage
• •  Single supply voltage from 3.0V to 3.6V

•  Radiation Performances
• •  No Single Event Latch-up Below an LET Threshold of 60 MeV.cm2 /mg @125°C
• •  Total Ionizing Dose of 30 krad(Si)

•  Packages
• •  CQFP144, 144-lead CQFP, 22 x 22mm, pitch 0.5 mm
• •  LQFP144, 144-lead LQFP, 20 x 20mm, pitch 0.5 mm
