SamtecMEC6-110-02-L-D-RA1Conector de borde de tarjeta

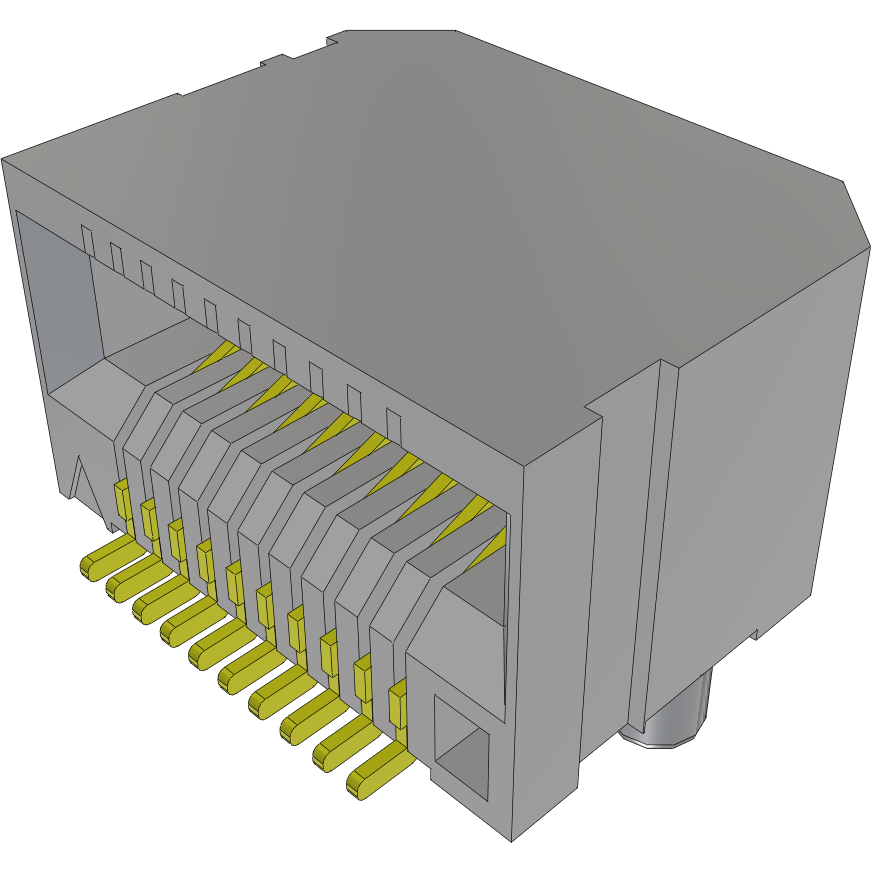

Look no further than the MEC6-110-02-L-D-RA1 smart card connector from Samtec, a connector that can essentially eliminate the need for an opposite male connector. This SKT connector's 20 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. Its pitch is 0.635 mm. It has a socket type gender. It has a maximum voltage rating of 195 VAC. It has a right angle body orientation. This product is 5.78 mm tall. This device has a maximum current rating of 1.7 A/contact. MEC6-110-02-L-D-RA1 is housed in black liquid crystal polymer. This card edge connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.
