TPS76901EVM-127, Evaluation Board for TPS76901 Ultra Low Power, SOT-23 LDO Linear Regulator
Texas Instruments이 부품 TPS76901DBV 을 사용하는 참조 설계
이미지
1 / 1
최종 제품의 경우
- Cellular Phone
- Digital Camera
- Portable Consumer Electronics
- Processor Power Management
- Test Equipment
Description

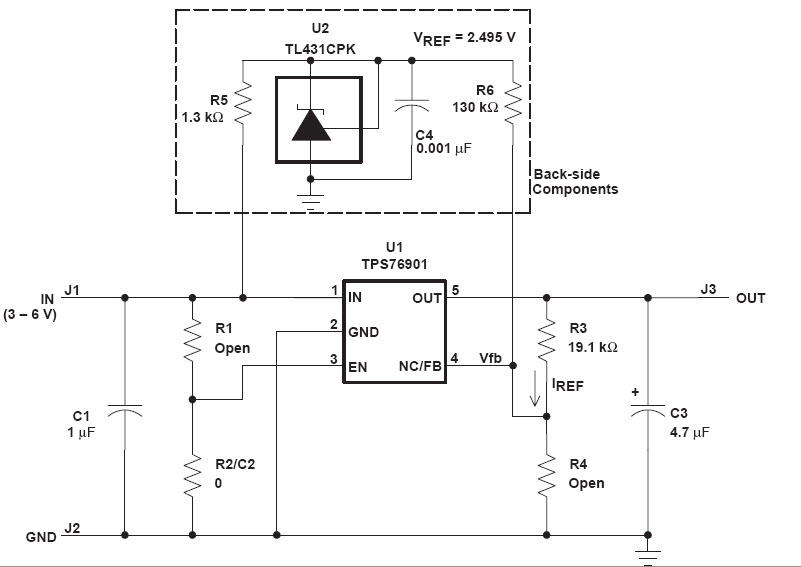

- TPS76901EVM-127, Evaluation Board for TPS76901 Ultra Low Power, SOT-23 LDO Linear Regulator provide user with cost-effective solutions for providing power to various low-voltage options. EVMs are setup as 1V, 1.8V and 3.3V output at 100mA. Various options can be implemented with board to give a range of output voltages from 0 to 5.5 V
최종 제품의 경우
-
Conversion TypeDC to DC
-
Input Voltage3 to 6 V
-
Output Voltage0 to 5.5 V
-
Output Current0.1 A
-
TopologyLDO
피쳐링 부품 (4)
| 부품 번호 | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
TL431CPKE6 | Texas Instruments | Voltage References | Adjustable precision shunt regulator | 구매 | |
|
TL431CPK | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 4-Pin(3+Tab) SOT-89 T/R | 구매 | |
|
TPS76901DBVRG4 | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.2V to 5.5V 0.1A 5-Pin SOT-23 T/R | 구매 | |
|
|
TPS76901DBVR | Texas Instruments | Linear Regulators | LDO Regulator Pos 1.2V to 5.5V 0.1A 5-Pin SOT-23 T/R | 구매 | |
