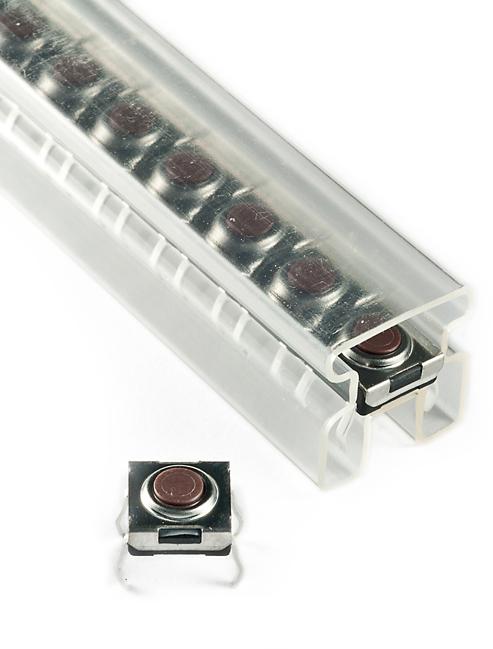

NKK SwitchesCB15FP-SSwitch Tactile
Switch Tactile OFF (ON) SPST Flat Round Button PC Pins 0.05A 24VDC 100000Cycles 1.57N Thru-Hole Stick
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| Automotive | No |
| PPAP | No |
| SPST | |
| Flat Round Button | |
| Momentary | |
| OFF (ON) | |
| 0.05@24VDC | |
| 250VAC | |
| 100 | |
| 100 | |
| 100000 | |
| 100000 | |
| 1.57 | |
| 6.5 | |
| Through Hole | |
| PC Pins | |
| 4 | |
| 4 | |
| Process | |
| Polyphthalamide | |
| Straight | |
| -25 | |
| 70 | |
| Stick | |
| 6.2 | |
| 6.8 | |
| 3.1 | |
| Silver | |
| Beryllium Copper Alloy | |
| Polyphthalamide/N/A |
This CB15FP-S tactile switch from NKK Switches is perfect for turning on your circuit by applying pressure. It has a SPST configuration. This device has a maximum current rating of 0.05 A @ 24VDC. This tactile switch has a minimum operating temperature of -25 °C and a maximum of 70 °C. The CB15FP-S tactile switch has a PC pin termination style. This product is 6.2 mm long, 3.1 mm tall and 6.8 mm deep. The maximum DC voltage rating is 24 VDC.
