Analog DevicesAD9142A-M5375-EBZData Conversion Development Boards and Kits

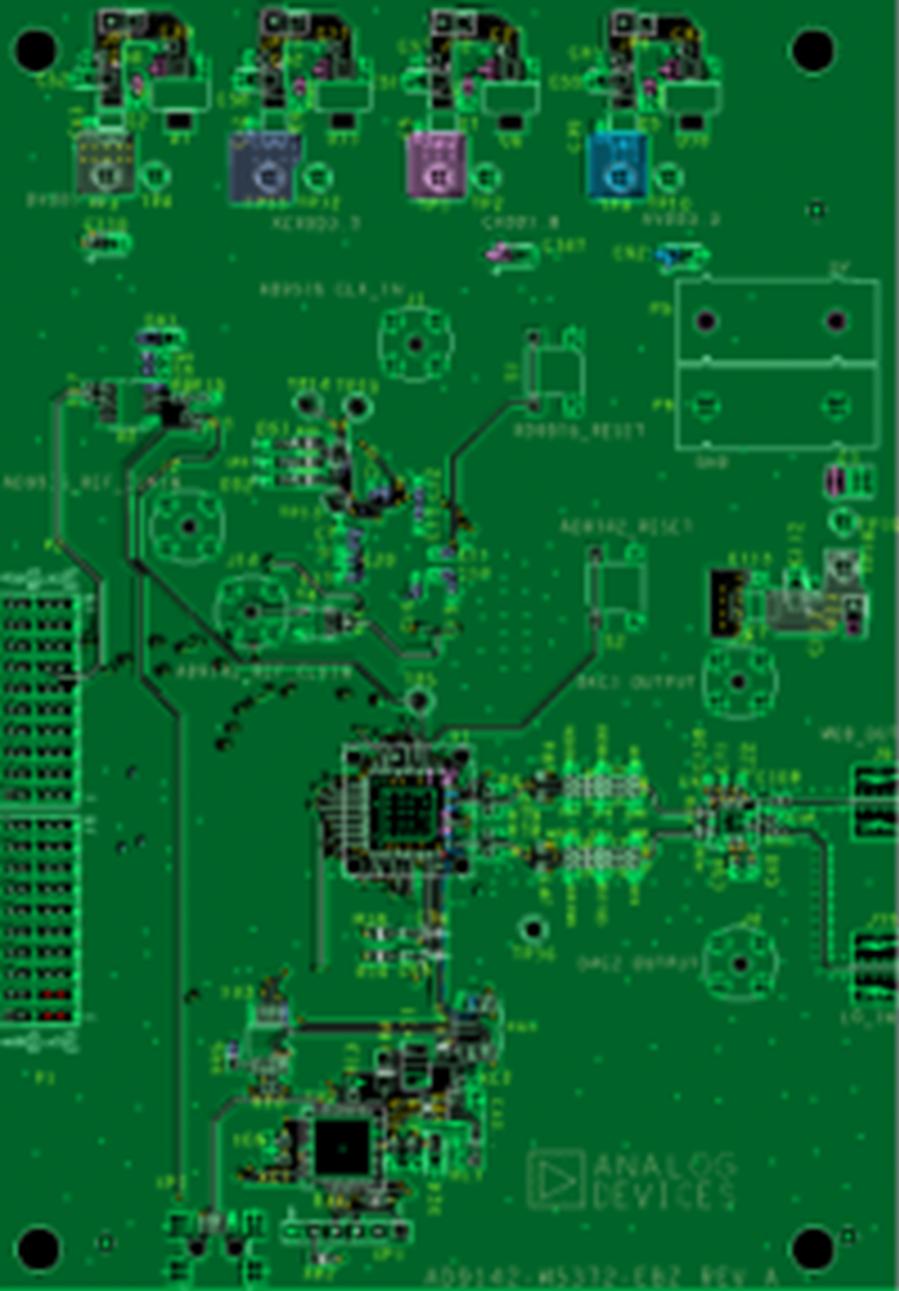

AD9142A DAC Evaluation Board 1.6GSPS
| Compliant | |
| EAR99 | |
| Active | |
| 8473.30.11.80 | |
| Automotive | No |
| PPAP | No |
| Evaluation Board | |
| AD9142A | |
| DAC | |
| 16 | |
| 1.6G | |
| 5(Typ) | |
| No | |
| No |
This easy-to-use evaluation board AD9142A-M5375-EBZ data conversion development board and kit from Analog Devices will help you speed up both your data collection and processing.
Dev Kit Description
The AD9142A-M5375-EBZ connects to a DPG2 for quick evaluation of the AD9142A, a high-speed, signal processing Digital to Analog Converter. The DPG2 automatically formats the data and sends it to the AD9142A-M5375-EBZ, simplifying evaluation of the device. The Evaluation Board (EVB) runs from a +5V supply. A clock distribution chip AD9516 is included on this EVB as a clock fan-out and frequency divider for the DACCLK, REFCLK and DPG2 input clock. Also included is a quadrature modulator ADL5375 for quick DAC+IQMOD evaluation.
