Molex0643201301Connector Accessories

CMC and CMX Sealed Connector System

The CMC/CMX Connector System helps manufacturers transform vehicle architectures with a wide range of sealed, high-density, hybrid, wire-to-board and wire-to-wire off-the-shelf solutions designed for reliability in harsh environments and high-performance applications.

Use With Part (s)

CMC Receptacles and Wire Caps - 643201311
Power CMC Receptacles - 643183011

Key Features and Benefits

• CMC/CMX Connection System
• Wire dress cover available:
• Accomodates all wire and bundle sizes

• Left or right wire output available:
• Offers greater flexibility in harness routing

• Multiple polarization and color-keying options:
• Prevents mis-mating, reduces operator fatigue and supports ease of assembly

Applications

• •  Automotive
• •  Automatic transmission control unit
• •  Electrical/hybrid vehicles
• •  Engine control unit
• •  Internal combustion engine vehicles
• •  Inverter
• •  Motor control unit
• •  On-board charger
• •  Parking brake
• •  Power distribution unit
• •  Suspension controller
• •  Vehicle control unit

Related Connectors

MXP120 Connectors
MX123 Connectors

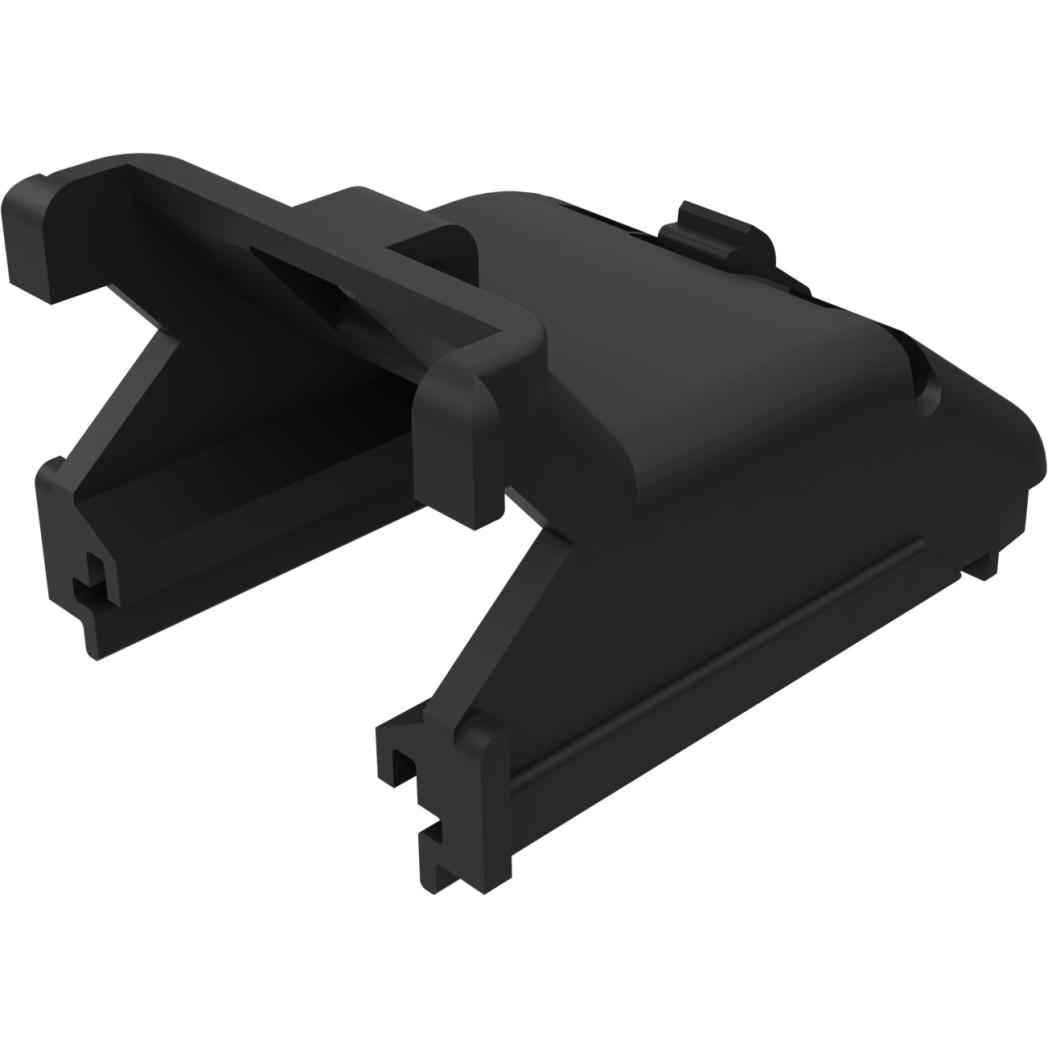

Make connections with an extra layer of protection with this cap 0643201301 connector accessory from Molex. This product is 23.75 mm tall.
