TPS712XXEVM-050, Dual RF LDO Evaluation Module for the TPS712xx a High PSRR, Low Output Linear Regulator
Diseño de referencia usando la pieza TPS71202DRC de Texas Instruments
이미지
1 / 1
Para productos finales
- Cellular Phone
- Cordless Phone
- Digital Camcorder
- Digital Camera
- FPGA Solutions
- Internet Radio Player
- PCMCIA Card
- Personal Digital Assistant
- Processor Power Management
- Wireless LAN
Descripción

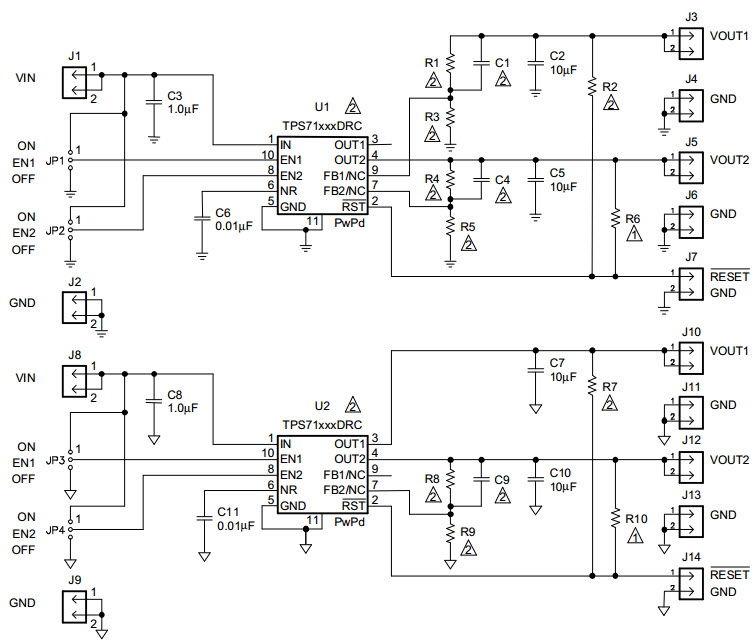

- TPS712XXEVM-050, Evaluation Module features the TPS71247DRC and the TPS71202DRC devices. Each device can deliver up to 250mA at each output. The EVM is designed to operate with an input voltage up to +5.5V. The default output voltage of this EVM is +2.8V (VOUT1) and +1.225V (VOUT2) for U1 and +1.8V (VOUT1) and +2.85V (VOUT2) for U2. If desired, this EVM can easily be modified to supply higher or lower output voltages by adjusting the appropriate feedback resistor dividers
Características clave
-
Conversion TypeDC to DC
-
Input Voltage5.5 V
-
Output Voltage1.225|1.8|2.8|2.85 V
-
Output Current0.25 A
-
TopologyLDO
