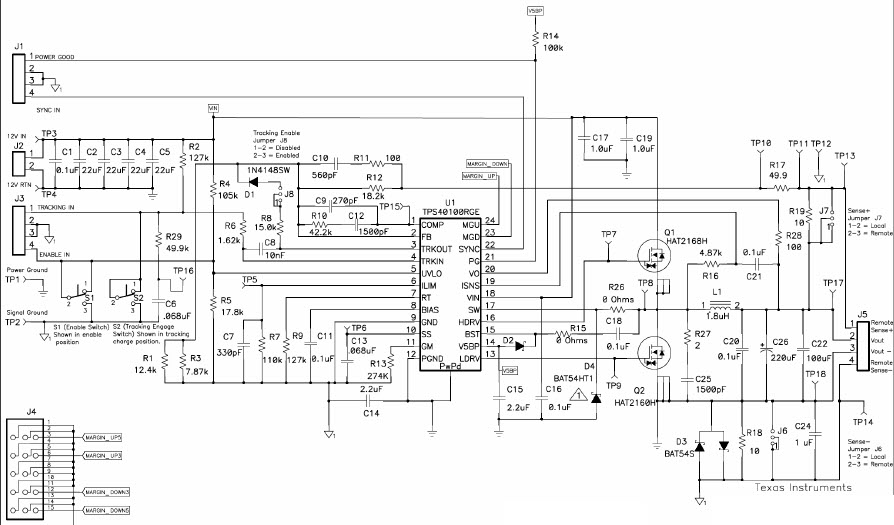

TPS40100EVM-001, A 12V Input, 3.3V Output, 10A Synchronous Buck Controller
Diseño de referencia usando la pieza TPS40100RGE de Texas Instruments
이미지
1 / 1
Para productos finales
- Backplane Distributed Power
- Communications and Telecom
- Power Supplies
- Wired Networking
Descripción
- TPS40100EVM-001 is designed to use a regulated 12V +/-10% (10.8V-13.2V) bus to produce a regulated 3.3V output at up to 10A of load current. The EVM is designed to demonstrate the TPS40100 in a typical regulated bus to low-voltage application while providing a number of test points to evaluate the performance of the TPS40100. The EVM includes features to demonstrate voltage tracking, margin up/down, enable/disable and power good. A synchronization pin is provided to allow the EVM to be synchronized to an external clock
Características clave
-
Conversion TypeDC to DC
-
Input Voltage10.8 to 13.2 V
-
Output Voltage3.22 to 3.39 V
-
Output Current0 to 10 A
-
Efficiency93.9 %
-
TopologyBuck
