TAS5719EVM, evaluation module demonstrates the capabilities TAS5719PHP. The TAS5719 combines a 10W stereo class-D audio power amplifier with TI's patented Direct Path ground-centered HeadPhone
Diseño de referencia usando la pieza TAS5719PHP de Texas Instruments
이미지
1 / 2
Documentos asociados
Para productos finales
- Portable Audio
Descripción

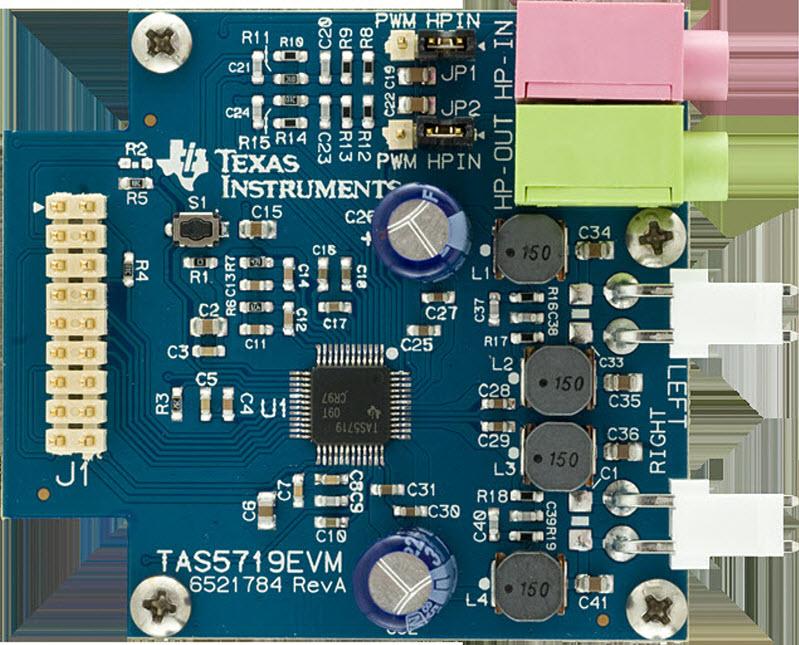

- TAS5719EVM, evaluation module demonstrates the capabilities TAS5719PHP. The TAS5719 combines a 10W stereo class-D audio power amplifier with patented Direct Path ground-centered HeadPhone. This EVM and accompanying materials allows the user to experiment with the two-band DRC, the programmable EQ, Digital THD manager and configure the ground-centered output path as either a 2Vrms line driver or as a 40mW HeadPhone. for detailed information about the TAS5719capabilities, review the data sheet available on TI.com
Características clave
-
Number of Channels2
-
Output Power15 W
-
Amplifier TypeClass-D
Piezas destacadas (2)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
TAS5719PHPR | Texas Instruments | Audio Amplifiers | Audio Amp Headphone/Speaker 2-CH Stereo 15W Class-AB 48-Pin HTQFP EP T/R | AÑADIR AL CARRITO | |
|
|
TAS5719PHP | Texas Instruments | Audio Amplifiers | Audio Amp Headphone/Speaker 2-CH Stereo 15W Class-AB 48-Pin HTQFP EP Tray | AÑADIR AL CARRITO | |
