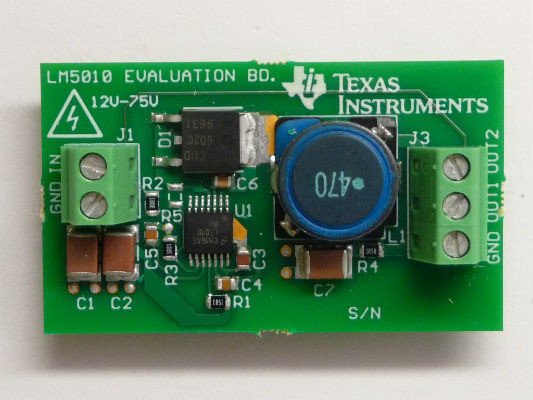

LM5010 EVAL/NOPB, Evaluation Board using LM5010 provides design engineer with a fully functional buck regulator
Diseño de referencia usando la pieza LM5010AMH de Texas Instruments
이미지
1 / 2
Documentos asociados
Para productos finales
- Automotive and Transportation
- Telecom Power Supply
Descripción
- LM5010 EVAL/NOPB, Evaluation Board using LM5010 provides design engineer with a fully functional buck regulator, employing constant on-time (COT) operating principle, 5V DC to DC Multi-Output Power Supply for Automotive
Características clave
-
Conversion TypeDC to DC
-
Input Voltage6 to 75 V
-
Output Voltage5|5 V
-
Output Current0 to 1@5V A
-
Efficiency94.75 %
-
TopologyBuck
Piezas destacadas (6)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
LM5010AMH/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 70V 1A 14-Pin HTSSOP EP Tube | AÑADIR AL CARRITO | |
|
|
LM5010AMHX/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 70V 1A 14-Pin HTSSOP EP T/R | AÑADIR AL CARRITO | |
|
|
LM5010AMHE/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 70V 1A 14-Pin HTSSOP EP T/R | AÑADIR AL CARRITO | |
|
|
LM5010AMHE/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 70V 1A 14-Pin HTSSOP EP T/R | AÑADIR AL CARRITO | |
|
|
LM5010AMHX/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 70V 1A 14-Pin HTSSOP EP T/R | AÑADIR AL CARRITO | |
|
|
LM5010AMH/NOPB | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 6V to 75V Step Down Single-Out 2.5V to 70V 1A 14-Pin HTSSOP EP Tube | AÑADIR AL CARRITO | |
