SamtecTSW-106-09-G-DCabezales del conector y receptáculos PCB

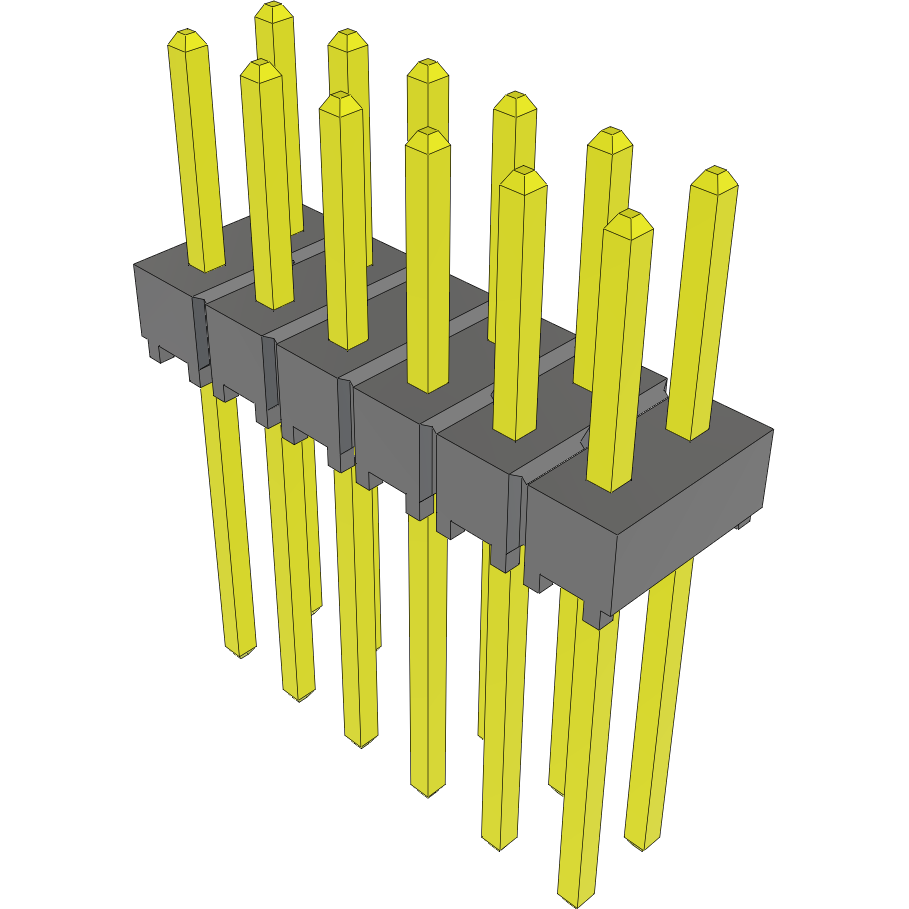

Thanks to Samtec's unshrouded TSW-106-09-G-D header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector's 12 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. It has a header type gender. This is a 2-row connector. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 15.24 mm long, 8.38 mm tall and 5.08 mm deep. TSW-106-09-G-D is housed in black polyester.
