SamtecTSW-105-05-F-DCabezales del conector y receptáculos PCB

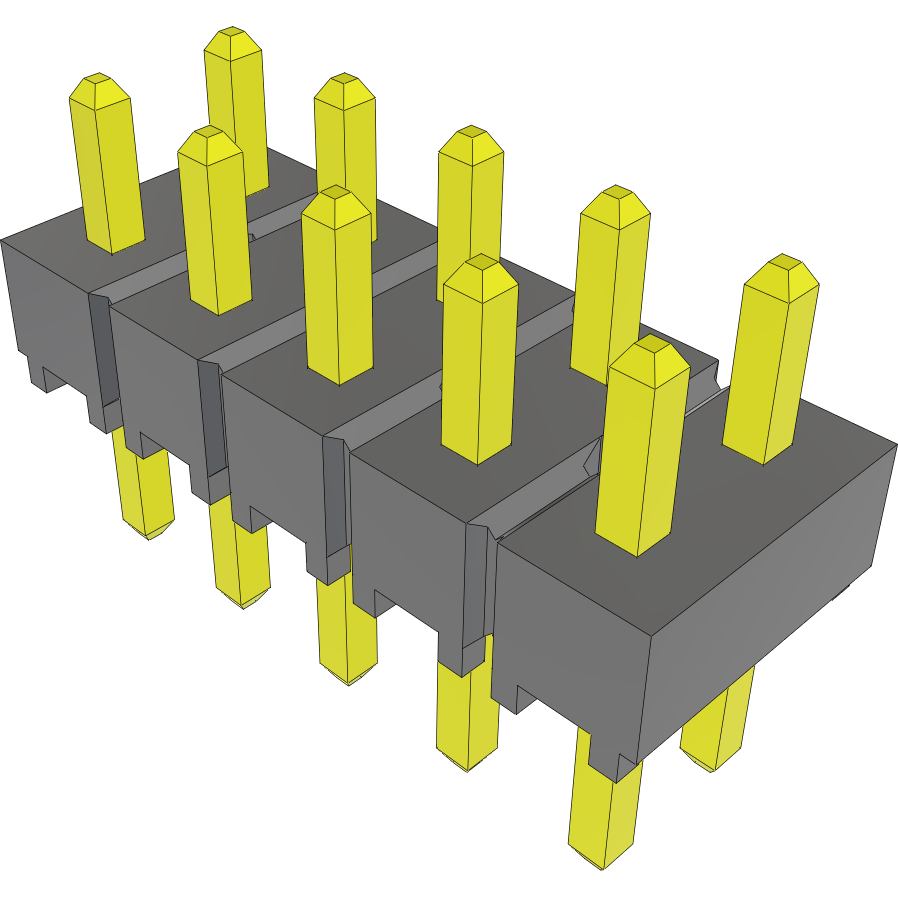

Use this unshrouded TSW-105-05-F-D connector from Samtec when board-to-board interconnects is required. This HDR connector's 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 550 VAC. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 6.3 A/contact. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. TSW-105-05-F-D is housed in black polyester. This product is 12.7 mm long, 5.21 mm tall and 5.08 mm deep.
