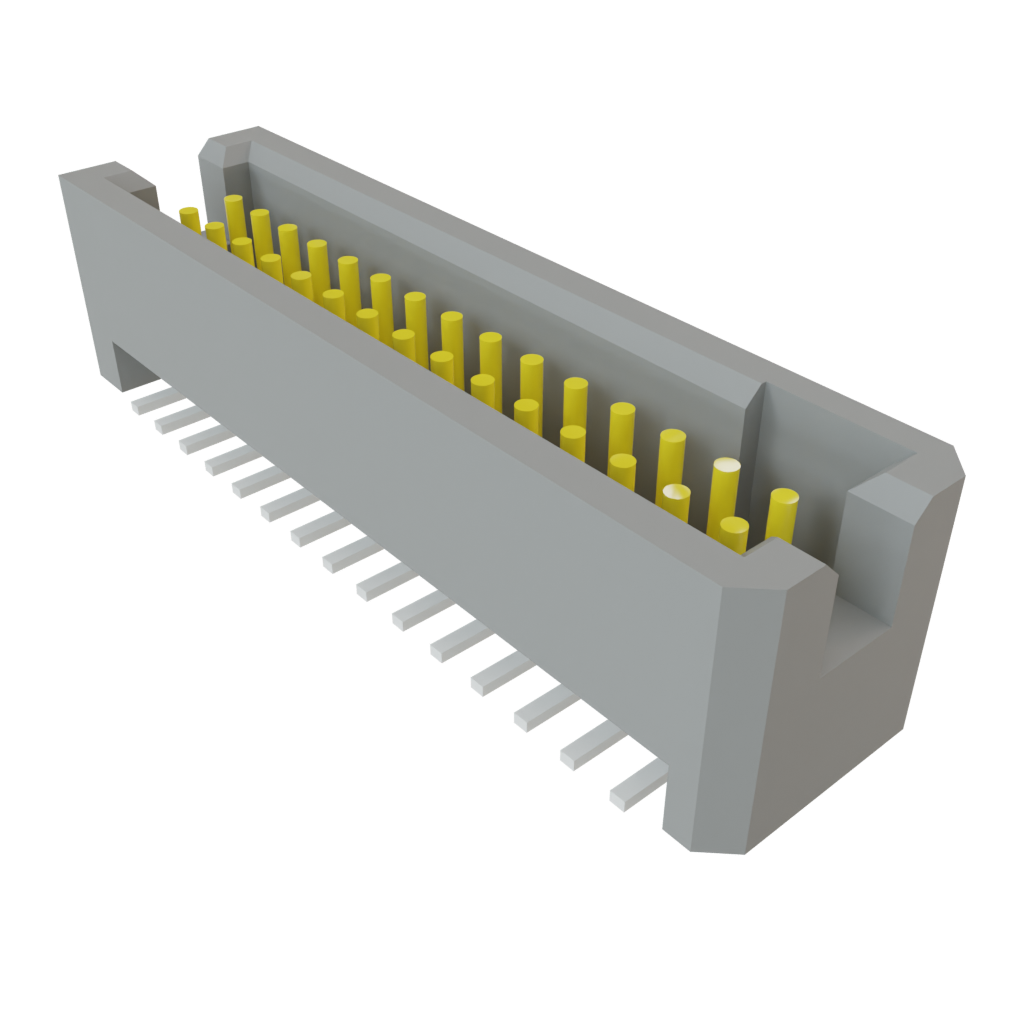

SamtecTFM-115-02-L-DCabezales del conector y receptáculos PCB

Mount this shrouded TFM-115-02-L-D header connector from Samtec on a jumper post on your PCB to support physical configuration options. This HDR connector's 30 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.27 mm. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. It has a header type gender. This is a 2-row connector. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. TFM-115-02-L-D is housed in black liquid crystal polymer. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 22.23 mm long, 5.72 mm tall and 5.72 mm deep.
