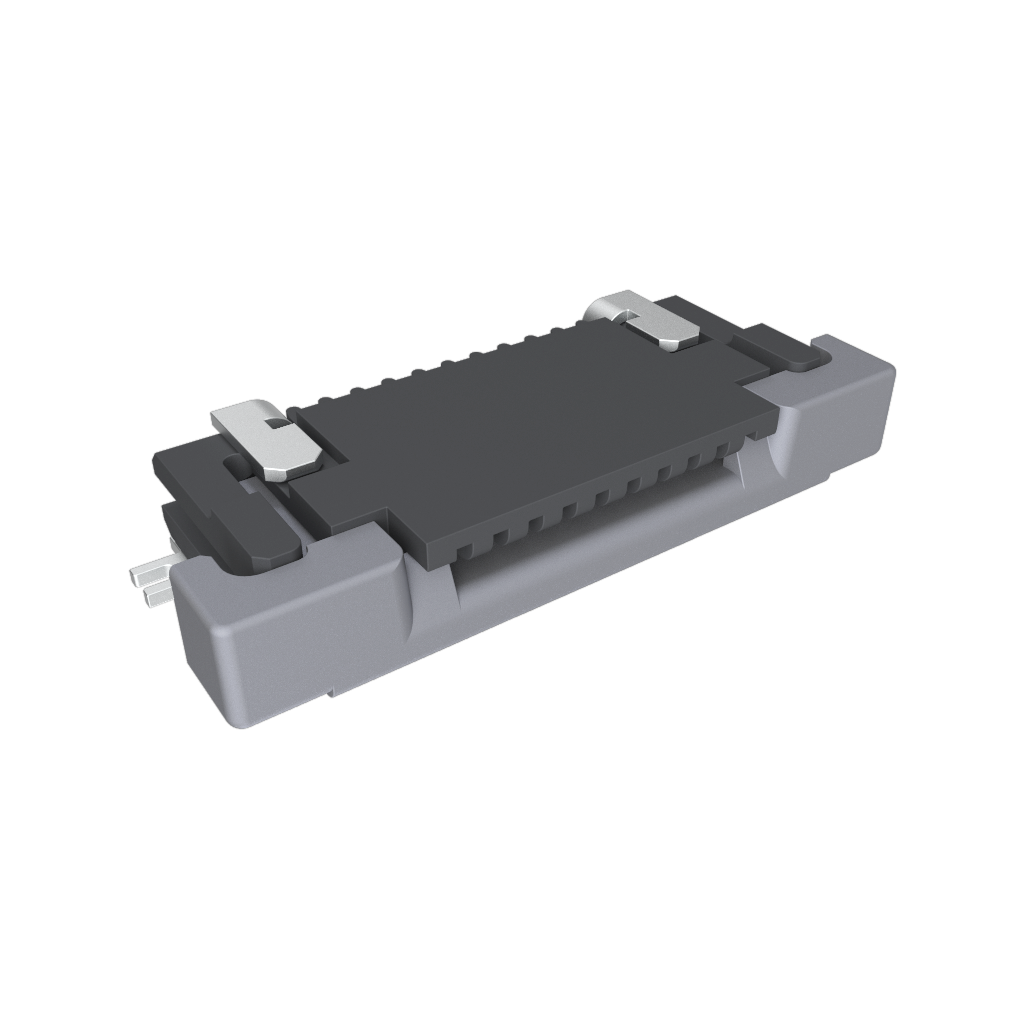

Amphenol Communications SolutionsSFV10R-4STE1HLFConector FFC-FPC
0.50mm Flex Connector, SFV-R Series, 10 Position, Top Side Contact, Side Entry Surface Mount ZIF Connector, Halogen Free, Lead Free with Cable-Lock
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| FPC Connector | |
| 10 | |
| 1 | |
| Solder | |
| 0.5 | |
| Right Angle | |
| SKT | |
| 0.5/Contact | |
| 50VDC|50VAC | |
| 100 | |
| 30 | |
| -55 | |
| 105 | |
| 20 | |
| Tape and Reel | |
| 10.5 | |
| 4.9 | |
| 1.8 | |
| Surface Mount |
Optimize the design of a space-limited electronic device with this fpc connector SFV10R-4STE1HLF flexible printed circuit from FCI. It has a maximum voltage rating of 50 VDC|50VAC. Its pitch is 0.5 mm. It has a right angle body orientation. This socket type connector's 10 contacts that are made out of phosphor bronze and plated with matte tin over nickel. This is a 1-row connector. This device has a maximum current rating of 0.5 A/contact. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. SFV10R-4STE1HLF is housed in black polyamide. It uses the solder termination method. This flexible flat cable has an operating temperature of -55 to 105 °C. This product is 10.5 mm long, 1.8 mm tall and 4.9 mm deep.
| EDA / CAD Models |
