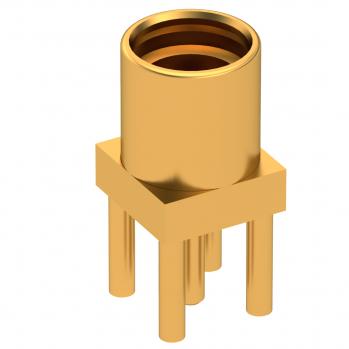

RadiallR110A426000Conector RF
Conn MMCX 0Hz to 3GHz 50Ohm Solder ST Thru-Hole RCP Gold
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.69.80.00 | |
| SVHC | Yes |
| Índice de SEP por encima del límite autorizado | Yes |
| Automotive | No |
| PPAP | No |
| MMCX | |
| RCP | |
| Solder | |
| Straight | |
| F | |
| Gold | |
| 0 to 3G | |
| 0.259 | |
| 170V | |
| 50 | |
| 1000 | |
| 100 | |
| Standard | |
| -40 | |
| 85 | |
| 3.5 | |
| 3.5 | |
| 4.5 | |
| Through Hole |
Ideal for any cable need, this mmcx R110A426000 RF connector from Radiall will bring a strong connection to your transmission line so you do not have to worry again. This connector's body is plated in gold. It has a receptacle type gender. It has a straight body orientation. It has an operating frequency of 0 to 3G Hz. This product is 3.5 mm long, 4.5 mm tall and 3.5 mm deep. It uses the solder termination method. This rf connector has an operating temperature of -40 to 85 °C.
