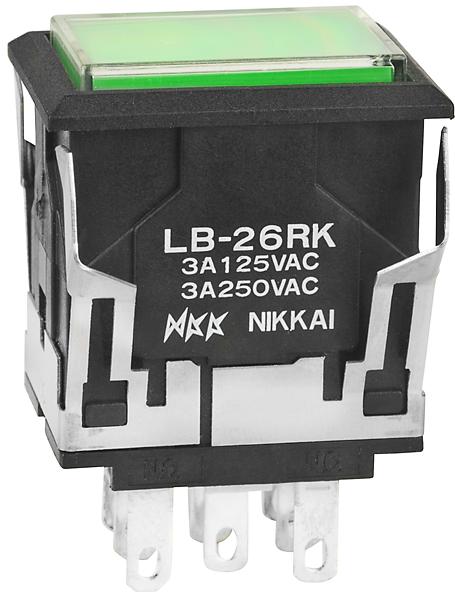

NKK SwitchesLB26RKW01-5F-JFBotón pulsador
Switch Push Button ON ON DPDT Rectangular Button 3A 250VAC 30VDC Alternate Panel Mount Quick Connect/Solder Lug
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.33 | |
| Automotive | No |
| PPAP | No |
| Alternate | |
| DPDT | |
| Rectangular Button | |
| ON ON | |
| 3@250VAC 30VDC | |
| 1000VAC | |
| 200 | |
| 50 | |
| 100000 | |
| 200000 | |
| Clear/Green | |
| 3.2 | |
| 2 | |
| 10.16 | |
| Panel Mount | |
| Quick Connect/Solder Lug | |
| 6 | |
| 5.08 | |
| Green | |
| Panel/Terminals | |
| O-Ring/Epoxy | |
| IP65 | |
| Liquid Crystal Polymer | |
| Glass Fiber/Polyamide | |
| Straight | |
| -25 | |
| 50 | |
| 24 | |
| 35 |
Turn on and off portions of your circuit design with the aid of this LB26RKW01-5F-JF push button switch manufactured from NKK Switches. This device has a maximum current rating of 3 A @ 250VAC 30VDC. It has a DPDT configuration. This push switch has an operating temperature range of -25 °C to 50 °C. The LB26RKW01-5F-JF push switch has a quick connect/solder lug termination style. This product is 35 mm tall. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.
