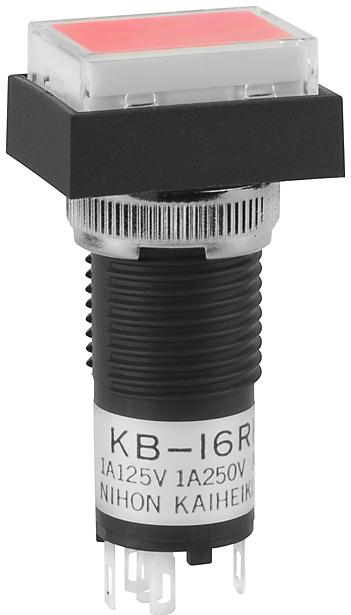

NKK SwitchesKB16RKW01-5C-JCBotón pulsador
Switch Push Button ON ON SPDT Rectangular Button 1A 250VAC 30VDC Alternate Panel Mount Solder Lug
| Compliant | |
| EAR99 | |
| Obsolete | |
| 8536.50.90.33 | |
| Automotive | No |
| PPAP | No |
| Alternate | |
| SPDT | |
| Rectangular Button | |
| ON ON | |
| Threaded | |
| 1@250VAC 30VDC | |
| 1000VAC | |
| 1000 | |
| 50 | |
| 50000 | |
| 100000 | |
| Clear/Red | |
| 3.5 | |
| 1 | |
| Panel Mount | |
| Solder Lug | |
| 3 | |
| 5 | |
| 2.54 | |
| Red | |
| Polyamide | |
| Polyamide | |
| Straight | |
| -25 | |
| 50 | |
| M12P1 | |
| 14.2 | |
| 10.5 | |
| 14 | |
| 18.5 | |
| 38.5 |
Quickly reset and disrupt processes by mechanically pressing this KB16RKW01-5C-JC push button switch from NKK Switches. It has a SPDT configuration. This device has a maximum current rating of 1 A @ 250VAC 30VDC. This push switch has a minimum operating temperature of -25 °C and a maximum of 50 °C. The KB16RKW01-5C-JC push switch has a solder lug termination style. This product is 14 mm long, 38.5 mm tall and 18.5 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.
| EDA / CAD Models |
