NKK SwitchesJF15SP3CConmutador táctil
Switch Tactile OFF (ON) SPST Sculptured Button PC Pins 0.05A 24VDC 500000Cycles 1.96N Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| Automotive | No |
| PPAP | No |
| Ultra-Thin | |
| SPST | |
| Sculptured Button | |
| Momentary | |
| OFF (ON) | |
| 0.05@24VDC | |
| 250VAC | |
| 500 | |
| 50 | |
| 500000 | |
| 500000 | |
| 1.96 | |
| Red | |
| 1.7 | |
| 2 | |
| 10.16 | |
| Through Hole | |
| PC Pins | |
| 4 | |
| 3.6 | |
| 12.7 | |
| Construction/N/A | |
| Nitrile Butadiene Rubber/Process | |
| Glass Fiber/Polyester | |
| Straight | |
| -25 | |
| 85 | |
| 17.7 | |
| 17.7 | |
| 5.08 | |
| 17.7 | |
| 17.7 | |
| 6.78 | |
| Silver | |
| Phosphor Bronze | |
| (Glass Fiber/Polyester)/N/A |

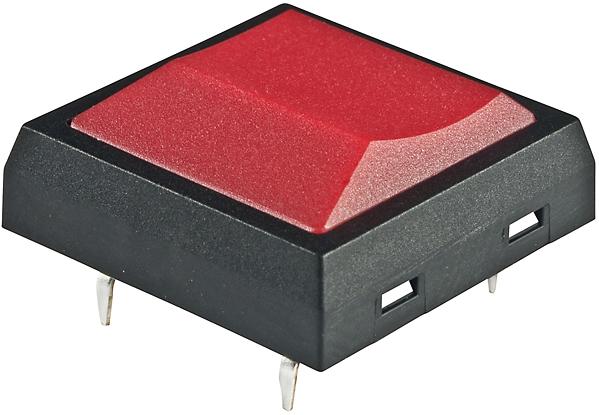

This ultra-thin JF15SP3C tactile switch from NKK Switches makes it possible to turn on or off your circuit by the use of pressure. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This tactile switch has an operating temperature range of -25 °C to 85 °C. The JF15SP3C tactile switch has a PC pin termination style. This red sculptured button actuator is 1.7 mm long. The maximum DC voltage rating is 24 VDC. This product is 17.7 mm long, 6.78 mm tall and 17.7 mm deep.
| EDA / CAD Models |
