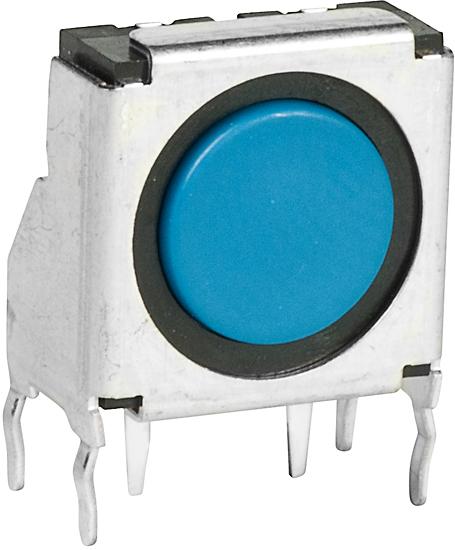

NKK SwitchesJB15FHConmutador táctil
Switch Tactile OFF (ON) SPST Round Button PC Pins 0.05A 24VDC 5000000Cycles 1.76N Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| 8538.90.81.80 | |
| Automotive | No |
| PPAP | No |
| Low Profile | |
| SPST | |
| Round Button | |
| Momentary | |
| OFF (ON) | |
| 0.05@24VDC | |
| 250VAC | |
| 500 | |
| 50 | |
| 5000000 | |
| 5000000 | |
| 1.76 | |
| Gray | |
| 0.4 | |
| 1 | |
| Through Hole | |
| PC Pins | |
| 2 | |
| 3.1 | |
| 5.08 | |
| Construction/Terminals/N/A | |
| Nitrile Butadiene Rubber/Molded-In/Process | |
| IP67 | |
| Glass Fiber/Polybutylene Terephthalate | |
| Right Angle | |
| -25 | |
| 70 | |
| 10.8 | |
| 6.54 | |
| 10.8 | |
| 10.8 | |
| 6.94 | |
| 11.4 | |
| Silver | |
| Stainless Steel | |
| (Glass Fiber/Polybutylene Terephthalate)/N/A |
Want to use a force of pressure to turn on your circuit? Check out this low profile JB15FH tactile switch from NKK Switches. It has a SPST configuration. This device has a maximum current rating of 0.125 A @ 24VDC. This tactile switch has an operating temperature range of -25 °C to 70 °C. The JB15FH tactile switch has a PC pin termination style. This product is 10.8 mm long, 11.4 mm tall and 6.94 mm deep. This gray flat button actuator is 0.4 mm long. The maximum DC voltage rating is 24 VDC.
| EDA / CAD Models |
