NKK SwitchesISC15ANP4Botón pulsador

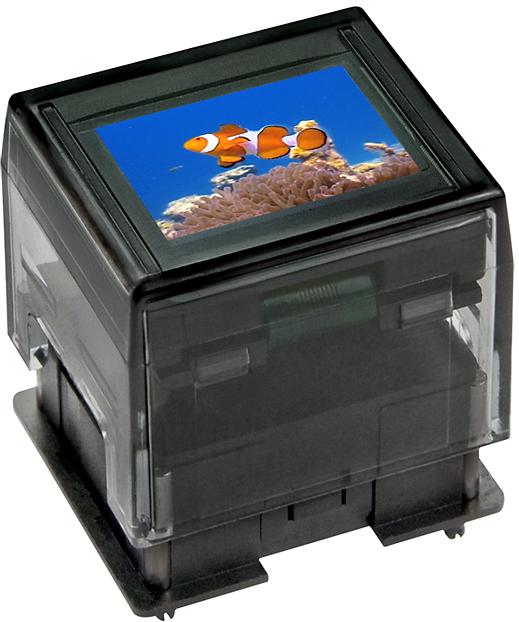

The ISC15ANP4 is a momentary pushbutton switch with a travel distance of 4.5 mm, 3 million electrical and mechanical cycles, and a dust-tight construction. The switch also integrates an OLED display with a resolution of 64 × 48 pixels, has a life expectancy of 30,000 hours when used at 100 cd/m2 and 60,000 hours when used at 50 cd/m2. The on-board OLED is capable of 65,536 colors in 16-bit mode and has a full viewing angle of 180°, a contrast that is 50 times greater than that of standard LCDs, and a power consumption of 3.8 mA. The display has an SPI interface and operates on 3.3 V logic while also requiring a 16 V source for driving the display. The switch has an operating temperature of –20°C to 70°C, a minimum insulation resistance of 100 MΩ, and a maximum contact resistance of 200 mΩ. The switch has a maximum current rating of 0.1 A when operated at 12 VDC and the SPST switch is normally open.

Drawings/Package

Key Features

• 3 million electrical and mechanical cycles

• SPST normally open operation

• Integrated OLED with a resolution of 64 × 48 pixels @ 65,536 colors

• SPI interface with 3.3 V operation

General Applications

• Advanced interfaces

• Industrial HMI

• Adaptable switch functions

Quickly reset and disrupt processes by mechanically pressing this ISC15ANP4 push button switch from NKK Switches. It has a SPST configuration. This device has a maximum current rating of 0.1 A @ 12VDC. This push switch has a minimum operating temperature of -20 °C and a maximum of 70 °C. The ISC15ANP4 push switch has a PC pin termination style. The maximum DC voltage rating is 12 VDC. This product is 20.59 mm long, 23 mm tall and 23.13 mm deep.
