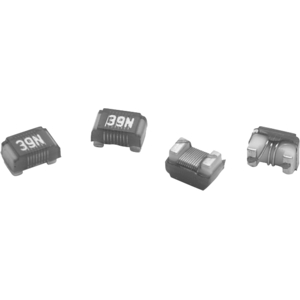

VishayIMC0805ER10NJ01Montaje superficial de inductores
Inductor RF Chip Wirewound 0.01uH 5% 250MHz 60Q-Factor Ceramic 0.6A 0.08Ohm DCR 0805 T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8504.50.80.00 | |
| Automotive | No |
| PPAP | No |
| RF Chip | |
| Wirewound | |
| Ceramic | |
| 0.01u | |
| 5% | |
| 250M | |
| 0.6 | |
| 0.08 | |
| 60 | |
| 500M | |
| 4800M | |
| 2 | |
| 0805 | |
| -40 | |
| 125 | |
| Tape and Reel | |
| 2.2 | |
| Surface Mount | |
| 1.45 | |
| 1.4 |
This high frequency chip IMC0805ER10NJ01 surface mount inductor from Vishay is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 80m Ohm. This product is 2.2 mm long, 1.4 mm tall and 1.45 mm deep. Its test frequency is 250M Hz, while its minimum self-resonant frequency is 4.8G Hz. This device is made with wirewound technology. It has an inductance of 10n H. It has a tolerance of 5%.
