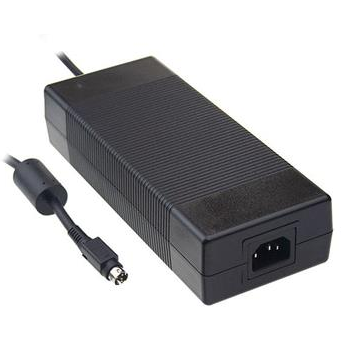

Mean Well EnterprisesGST220A24-R7BAdaptador incorporado externo
Plug-In Adapter Single-OUT 24V 9.2A 221W
| Compliant | |
| EAR99 | |
| Active | |
| 8471.80.10.00 | |
| Automotive | No |
| PPAP | No |
| Switching | |
| Desktop Adapter | |
| AC/DC | |
| 1 | |
| Fixed | |
| 24 | |
| 9.2 | |
| 221 | |
| 3000VAC | |
| 1% | |
| 3% | |
| 120(Max)@230VAC | |
| 4(Typ)@115VAC|2(Typ)@230VAC | |
| 47 to 63 | |
| 20@230VAC | |
| 93.5(Typ) | |
| IEC 320 C14 | |
| Black | |
| DIN Male | |
| Yes | |
| 180mV(Max) | |
| Overload|Over Temperature|Over Voltage | |
| -30 | |
| 70 | |
| 1100 | |
| Mounting | Desktop |
| Package Height | 46 mm |
| Package Width | 85 mm |
| Package Length | 210 mm |
Use electrical sub-system energy to power your electronic devices using a switching GST220A24-R7B portable external plug-in adapter from Mean-Well USA, Inc.. This part's single output can handle a current up to 9.2 A. This part has an input voltage of 85 to 264 V. It has a fixed output that has a voltage of 24 V and maximum output power of 221 W. This part has a temperature range of -30 °C to 70 °C.
