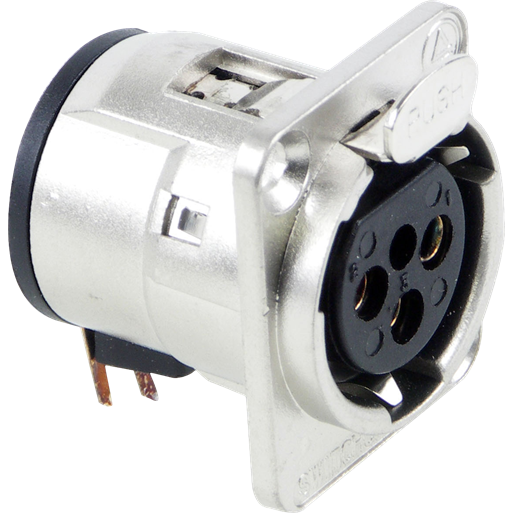

SwitchcraftE3FRAConector de audio y video
Conn XLR Connector F 3 POS Solder RA Thru-Hole 4 Terminal 1 Port
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.69.40.30 | |
| SVHC | Yes |
| Índice de SEP por encima del límite autorizado | Yes |
| Automotive | No |
| PPAP | No |
| XLR Connector | |
| F | |
| 3 | |
| 4 | |
| 1 | |
| Solder | |
| Right Angle | |
| 15 | |
| -55 | |
| 85 | |
| 26 | |
| 34.18 | |
| 31 | |
| Through Hole | |
| Thermoplastic | |
| Silver | |
| Copper Alloy |
Utilize your audio and video with the xlr connector E3FRA audio and video connector from Switchcraft. This F connector's 3 contacts that are made out of copper alloy and plated with silver. It has a right angle body orientation. It has a female type gender. This connector has a single port. E3FRA is housed in thermoplastic. This device has a maximum current rating of 15 A. This part has an operating temperature range of -55 °C to 85 °C. Its 4 terminals use the solder termination method. This product is 26 mm long, 31 mm tall and 34.18 mm deep.
