SamtecCLM-104-02-F-D-BECabezales del conector y receptáculos PCB

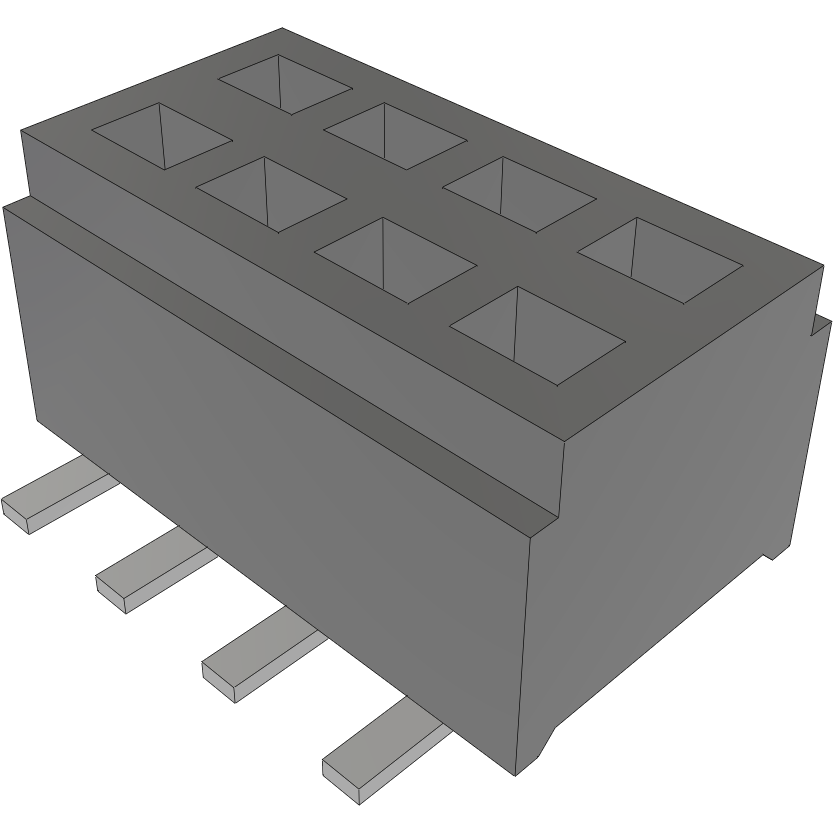

Use this socket strip CLM-104-02-F-D-BE header connector from Samtec where IDC ribbon cables are used. This SKT connector's 8 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1 mm. This is a 2-row connector. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 2.8 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 125 °C. This product is 4.31 mm long, 2.26 mm tall and 3.81 mm deep. It uses the solder termination method. CLM-104-02-F-D-BE is housed in black liquid crystal polymer.
