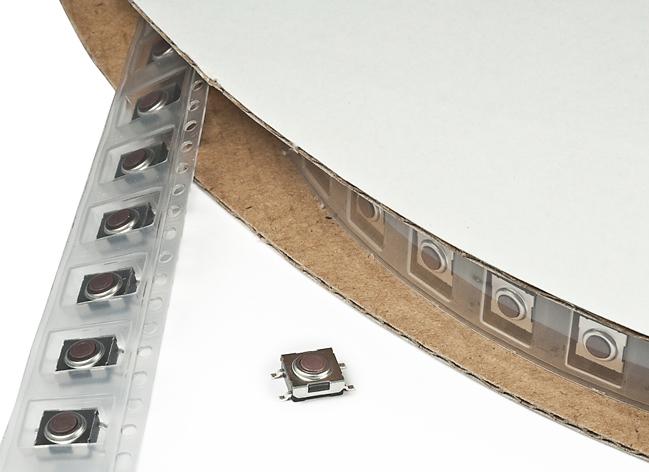

NKK SwitchesCB315FP-RConmutador táctil
Switch Tactile OFF (ON) SPST Round Button Gull Wing 0.05A 24VDC 100000Cycles 1.57N SMD T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| Automotive | No |
| PPAP | No |
| SPST | |
| Round Button | |
| Momentary | |
| OFF (ON) | |
| 0.05@24VDC | |
| 250VAC | |
| 100 | |
| 100 | |
| 100000 | |
| 100000 | |
| 1.57 | |
| 0.65 | |
| 2 | |
| 8.9 | |
| Surface Mount | |
| Gull Wing | |
| 4 | |
| 1.4 | |
| 4 | |
| Polyphthalamide | |
| Straight | |
| -25 | |
| 70 | |
| Tape and Reel | |
| 6.2 | |
| 6.2 | |
| 2.45 | |
| 6.2 | |
| 9 | |
| 3.1 | |
| Silver | |
| Beryllium Copper Alloy | |
| Polyphthalamide/N/A |
Want to use a force of pressure to turn on your circuit? Check out this CB315FP-R tactile switch from NKK Switches. It has a SPST configuration. This device has a maximum current rating of 0.05 A @ 24VDC. This tactile switch has an operating temperature range of -25 °C to 70 °C. The CB315FP-R tactile switch has a gull wing termination style. This round button actuator is 0.65 mm long. The maximum DC voltage rating is 24 VDC. This product is 6.2 mm long, 3.1 mm tall and 9 mm deep.
| EDA / CAD Models |
