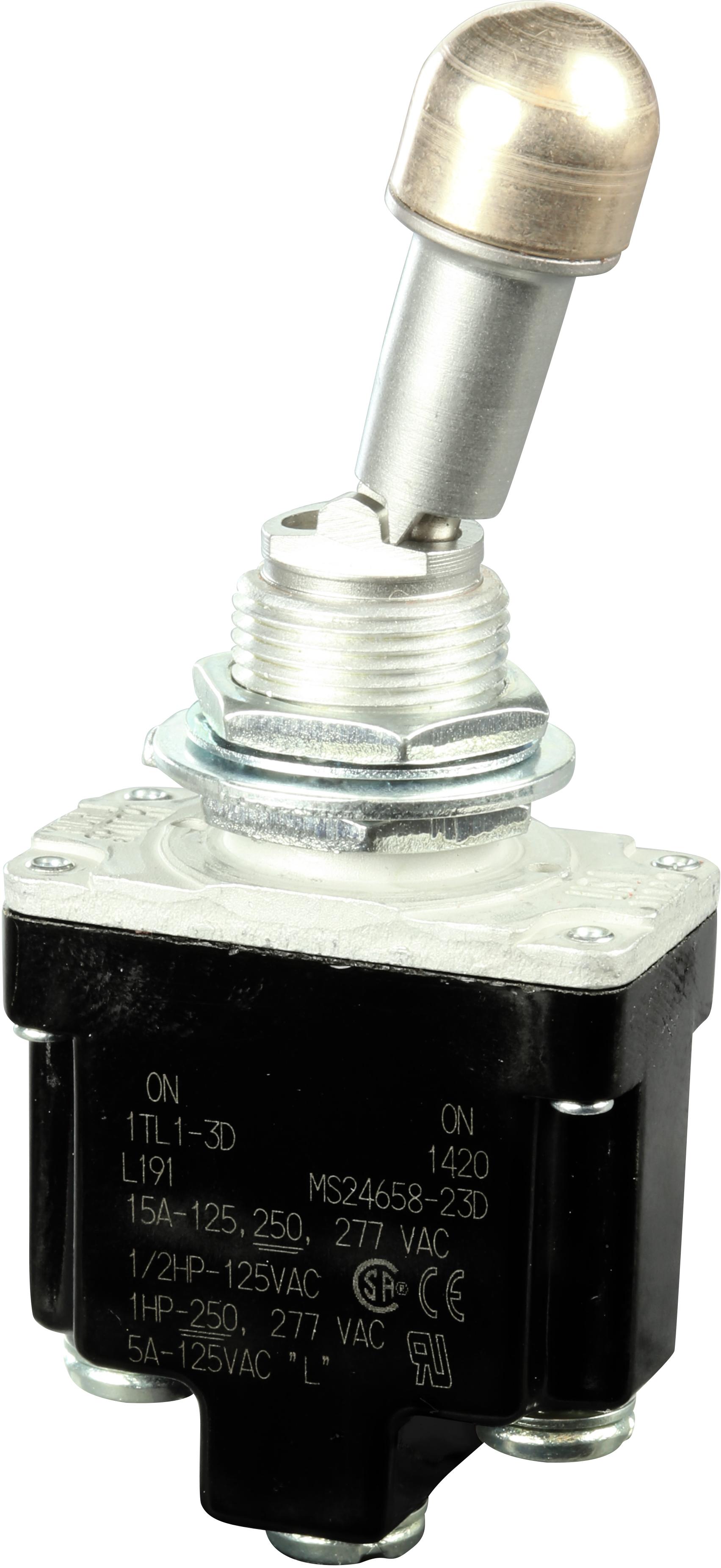

Honeywell1TL1-3DInterruptor de palanca
Switch Toggle ON ON SPDT Locking Lever Screw 20A 277VAC 250VDC Panel Mount with Threads
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Locking Lever | |
| SPDT | |
| ON ON | |
| Threaded | |
| 20@28VDC | |
| 26.7 | |
| Panel Mount with Threads | |
| Screw | |
| 3 | |
| 3.3 | |
| Complete | |
| Complete | |
| Straight | |
| -65 | |
| 71 | |
| 15/32-32 | |
| 28.4 | |
| 11.9 | |
| 15.7 | |
| 34.3 | |
| 28.4 | |
| 15.7 | |
| 72.9 |
The 1TL1-3D toggle switch from Honeywell is a simple way to power on and off various components of your application. This device has a maximum current rating of 20 A @ 28VDC. It has a SPDT configuration. This toggle switch has a minimum operating temperature of -65 °C and a maximum of 72 °C. The 1TL1-3D toggle switch has a screw termination style. This product is 28.4 mm long, 72.9 mm tall and 15.7 mm deep. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250 VDC.
