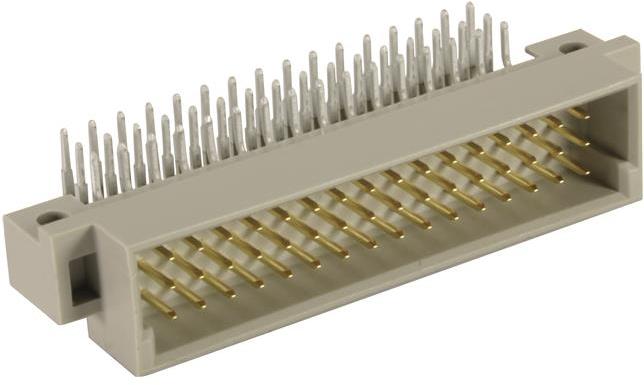

HARTING09231486951Blackplane del conector
Conn Backplane M 48 POS 2.54mm Solder RA Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Backplane | |
| M | |
| 48 | |
| Solder | |
| 2.54 | |
| Right Angle | |
| 2 | |
| 1000000 | |
| 20 | |
| -55 | |
| 125 | |
| 400 | |
| 7.8 | |
| 54 | |
| 11 | |
| Through Hole |
When small scale devices and operations need to interface with each other, use this 09231486951 backplane connector from Harting. This M connector has 48 contacts that are plated with gold over nickel. It has a male type gender. It has a right angle body orientation. This is a 3-row connector. Its pitch is 2.54 mm. It uses the solder termination method. This product is 11 mm tall.
