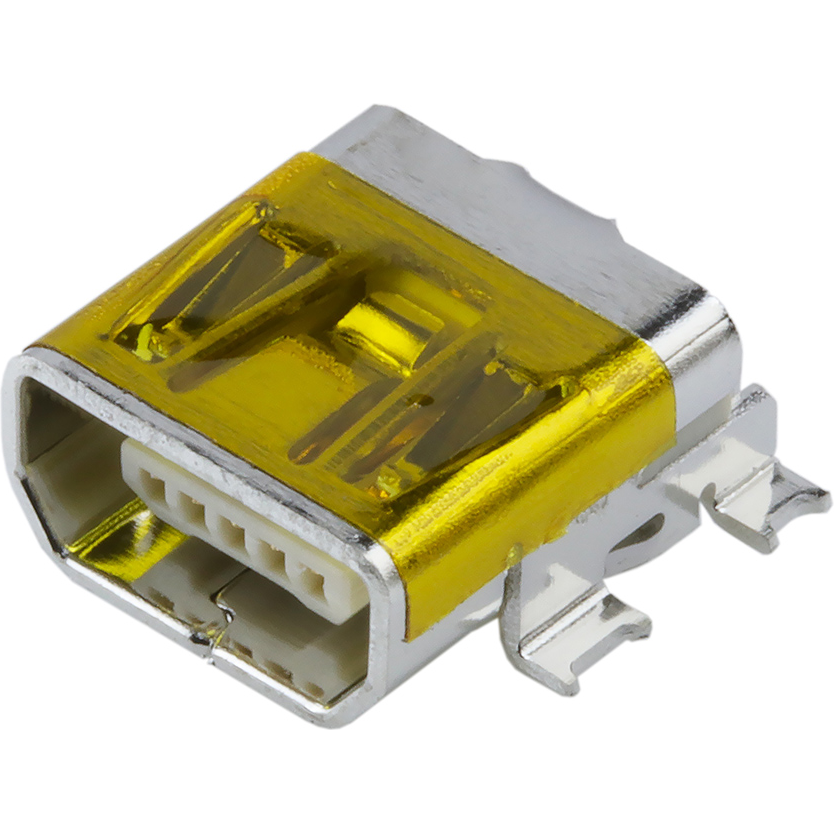

Molex0678038020Connector USB
Conn Mini USB 2.0 Type AB RCP 5 POS 0.8mm Solder RA SMD 5 Terminal 1 Port T/R
| Compliant | |
| EAR99 | |
| NRND | |
| 8536.69.80.00 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Mini USB 2.0 Type AB | |
| RCP | |
| 5 | |
| 5 | |
| 1 | |
| Solder | |
| 0.8 | |
| Right Angle | |
| 1/Contact | |
| 30V | |
| 100 | |
| 50 | |
| Copper Alloy | |
| Tin Over Nickel | |
| 0 | |
| 50 | |
| Tape and Reel | |
| 9.9 | |
| 9 | |
| 4 | |
| Surface Mount |
Use the mini-usb type ab 0678038020 audio and video connector from Molex to make your application work properly. This RCP connector's 5 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a right angle body orientation. It has a receptacle type gender. It has a maximum voltage rating of 30 V. Its pitch is 0.8 mm. This device has a maximum current rating of 1 A/contact. 0678038020 is housed in nylon. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its 5 terminals use the solder termination method. This part has a minimum operating temperature of 0 °C and a maximum of 50 °C. This product is 9.9 mm long, 4 mm tall and 9 mm deep.
