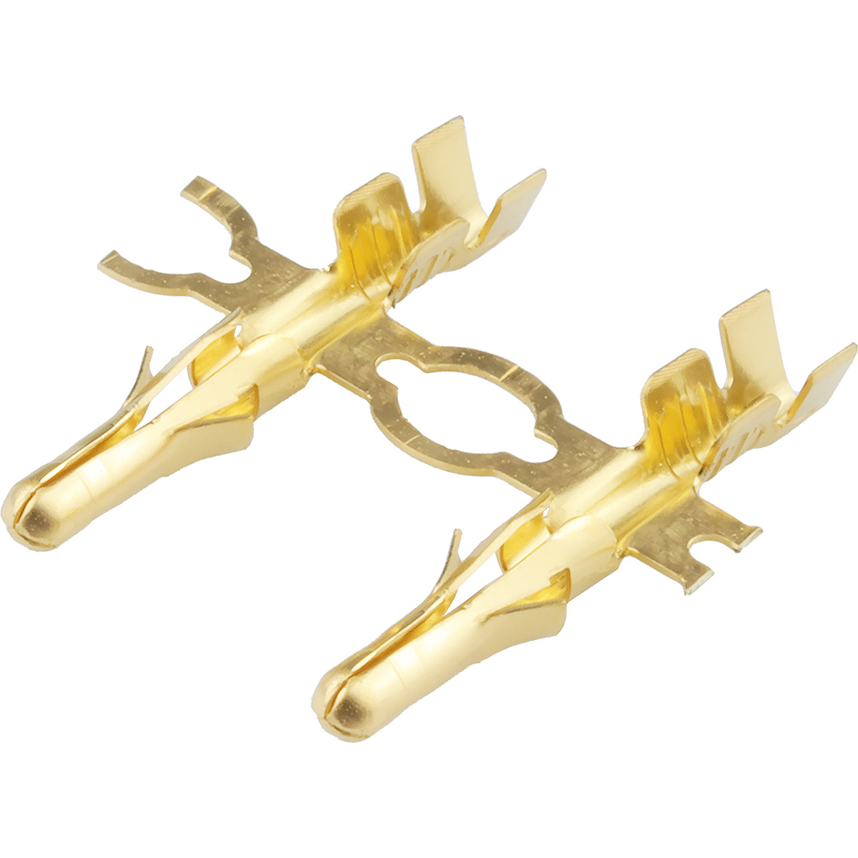

Molex0002096122Contacto del conector
Contact PIN Crimp ST Cable Mount 18-22AWG Standard .093" Reel
Other Part Names : 02096122
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Connector Headers and PCB Receptacles | |
| Stamped Power | |
| PIN | |
| Crimp | |
| Straight | |
| 17 | |
| 10 | |
| -40 | |
| 105 | |
| 25 | |
| Reel | |
| 0.414 | |
| 21.97 | |
| 3.76 | |
| 3.56 | |
| Standard .093" | |
| 18-22 | |
| Cable Mount |
This 0002096122 connector contact from Molex is designed to perform within the rated voltage and current specifications to provide a solid connection. It has a straight body orientation. This device has a maximum current rating of 17 A. This has a Connector Headers and PCB Receptacles connector. Its wire is 18-22 AWG. This product is 21.97 mm long, 3.56 mm tall and 3.76 mm deep. This connector contact has a minimum operating temperature of -40 °C and a maximum of 105 °C. It uses the crimp termination method.
| EDA / CAD Models |
