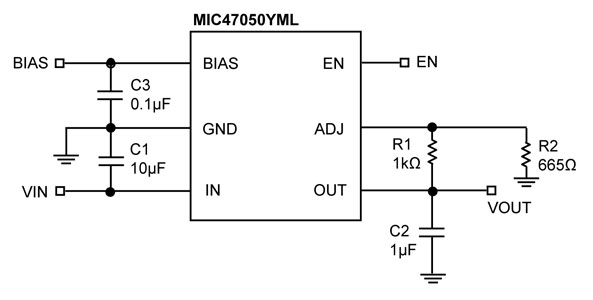

Typical Application for MIC47050: 500mA ULDO with Low Input and Low Output Voltage
Reference Design using part MIC47050 by Microchip Technology
1 / 1
For End Products
- Power Supplies
Description
- Typical Application for MIC47050: 500mA ULDO with Low Input and Low Output Voltage. The MIC47050 is a high-speed, ultra-low dropout, dual-supply NMOS ULDO designed to take advantage of point-of-load applications that use multiple supply rails to generate a low-voltage, high-current power supply. The MIC47050 can source 500mA of output current while only requiring a 1F ceramic output capacitor for stability. A 1.5% output voltage accuracy, low dropout voltage (44mV at 500mA), and low ground current makes this device ideally suited for mobile and point-of-load applications
Key Features
-
Conversion TypeDC to DC
-
TopologyLDO
Featured Parts (5)
| Part Number | Manufacturer | Type | Description | |||
|---|---|---|---|---|---|---|
|
MIC47050-1.8YML-TR | Microchip Technology | Linear Regulators | LDO Regulator Pos 1.8V 0.5A 6-Pin DFN EP T/R | Buy | |
|
|
MIC47050-1.2YML-TR | Microchip Technology | Linear Regulators | LDO Regulator Pos 1.2V 0.5A 6-Pin DFN EP T/R | Buy | |
|
MIC47050YML | Microchip Technology | Linear Regulators | LDO Regulator Pos 0.4V to 2V 0.5A 6-Pin DFN EP | Buy | |
|
|
MIC47050YML-TR | Microchip Technology | Linear Regulators | LDO Regulator Pos 0.4V to 2V 0.5A 6-Pin DFN EP T/R | Buy | |
|
MIC47050YMT-TR | Microchip Technology | Linear Regulators | LDO Regulator Pos 0.4V to 2V 0.5A 6-Pin TDFN EP T/R | Buy | |
